Merck

45348

Epoxy embedding medium, accelerator

≥95% (NT)

Synonym(s):

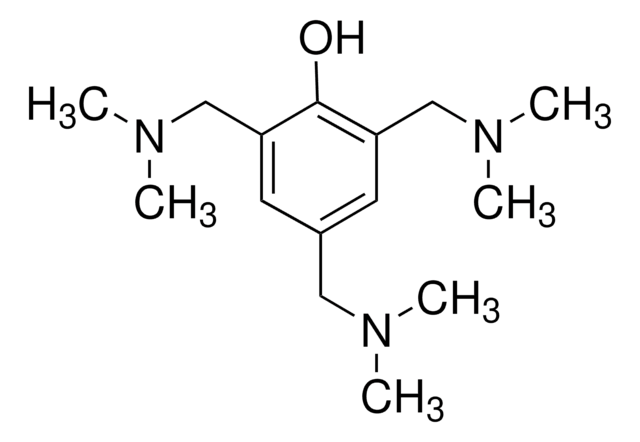

2,4,6-Tris(dimethylaminomethyl)phenol, Epon™ DMP 30 substitute, DMP-30

Sign In to View Organizational & Contract Pricing.

Select a Size

All Photos(1)

About This Item

Linear Formula:
[(CH3)2NCH2]3C6H2OH
CAS Number:
90-72-2
Molecular Weight:
265.39
UNSPSC Code:
12352100
NACRES:
NA.47
PubChem Substance ID:
57650300
EC Number:
202-013-9
Beilstein/REAXYS Number:
795751
MDL number:
MFCD00008330

Product Name

Epoxy embedding medium, accelerator, ≥95% (NT)

InChI key

AHDSRXYHVZECER-UHFFFAOYSA-N

InChI

1S/C15H27N3O/c1-16(2)9-12-7-13(10-17(3)4)15(19)14(8-12)11-18(5)6/h7-8,19H,9-11H2,1-6H3

SMILES string

CN(C)Cc1cc(CN(C)C)c(O)c(CN(C)C)c1

vapor density

>1 (vs air)

vapor pressure

<0.01 mmHg ( 21 °C)

assay

≥95% (NT)

form

solid

color

colorless to light yellow

refractive index

n20/D 1.516 (lit.)
n20/D 1.517

bp

130-135 °C/1 mmHg (lit.)

density

0.969 g/mL at 25 °C (lit.)

application(s)

hematology
histology

storage temp.

2-8°C

Quality Level

100

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

Epoxy embedding medium, accelerator is used according to the protocol provided for Epoxy Embedding Medium kit, Prod. No. 45359 available on-line. The embedding media is used for electron microscopy.

Legal Information

Epon is a trademark of Hexion, Inc.

pictograms

CorrosionExclamation mark
GHS05,GHS07

signalword

Danger

hcodes

H302,H314

Hazard Classifications

Acute Tox. 4 Oral - Eye Dam. 1 - Skin Corr. 1B

Storage Class

8A - Combustible corrosive hazardous materials

wgk

WGK 1

flash_point_f

300.2 °F - closed cup

flash_point_c

149 °C - closed cup

ppe

Faceshields, Gloves, Goggles, type ABEK (EN14387) respirator filter

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BCCN7178
BCCN1186
BCCL8681
BCCL3009
BCCM6145

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Masashi Yamaguchi et al.
Journal of electron microscopy, 58(4), 261-266 (2009-03-18)
A smart and efficient method for freeze substitution and serial sectioning of yeast cells is described. Yeast cells were placed in a single layer between two copper disks, rapidly frozen, freeze substituted and embedded in an epoxy resin. The cell
S Bratosin-Guttman
Journal of structural biology, 108(2), 162-167 (1992-03-01)
Electron microscopic studies of DNA are hampered by difficulties encountered with the spreading of DNA under protein-free conditions. The established and currently popular technique of spreading DNA on carbon membranes treated by glow discharge in an atmosphere of pentylamine is
C K E Bleck et al.
Journal of microscopy, 237(1), 23-38 (2010-01-09)
Bacteria are generally difficult specimens to prepare for conventional resin section electron microscopy and mycobacteria, with their thick and complex cell envelope layers being especially prone to artefacts. Here we made a systematic comparison of different methods for preparing Mycobacterium
S H Brorson
Micron (Oxford, England : 1993), 29(2-3), 89-95 (1998-07-31)
The purpose of this study was to examine how antigen retrieval affected the yield of immunogold labeling on epoxy sections based on embedding with different amounts of accelerator. The concentration of accelerator DMP-30 (tri(dimethyl amino methyl) phenol) was varied in
A Schaper et al.
FEBS letters, 355(1), 91-95 (1994-11-21)
We present recent advances in DNA specimen preparation technique for scanning force microscopy (SFM) based on spreading on mica in the presence of cationic and non-ionic detergents. Reproducible DNA imaging in air and in n-propanol has been achieved in the
