MABF1495Z Anti-NK1.1 (mouse) Antibody, clone PK136, Azide Free

Anti-NK1.1 (mouse) Antibody, clone PK136, Azide Free is an antibody against NK1.1 (mouse) for use in Flow Cytometry, Activity Assay, Immunohistochemistry, Immunoprecipitation.

MSDS (material safety data sheet) or SDS, CoA and CoQ, dossiers, brochures and other available documents.
Research Category: Inflammation & Immunology Research Sub-Category: Immunological Signaling Gene Symbol: Klrb1b, Ly55b, Nkrp1b, Klrb1c, Ly55c, Nkrp1c UniProt Number: P27812, P27814
View Products on Sigmaaldrich.com
MABF1495Z
100 μg
Retrieving price...
Price could not be retrieved
Minimum Quantity is a multiple of
Maximum Quantity is
Upon Order Completion More Information
You Saved ()

—
Request Pricing
—
Fulfillment and delivery delayed Fulfillment and delivery delayed
In Stock
Discontinued
Limited Quantities Available
Availability to be confirmed
    Remaining : Will advise
      Remaining : Will advise
      Will advise
      Contact Customer Service
      Contact Customer Service

      Special Offers



      Contact Customer Service

      Overview

      Replacement Information

      Special Offers

      100% Performance Guaranteed

      Key Spec Table

      Species ReactivityKey ApplicationsHostFormatAntibody Type
      MFC, ACT, IPMPurifiedMonoclonal Antibody
      Description
      Catalogue NumberMABF1495Z
      DescriptionAnti-NK1.1 (mouse) Antibody, clone PK136, Azide Free
      Alternate Names
      • Killer cell lectin-like receptor subfamily B member 1B allele A
      • Killer cell lectin-like receptor subfamily B member 1C
      • CD161b
      • CD161c
      • CD161 antigen-like family member B
      • CD161 antigen-like family member C
      • Ly-55b
      • Ly-55c
      • Lymphocyte antigen 55b
      • Lymphocyte antigen 55c
      • Natural killer cell surface protein NKR-P1B allele SJL/BALB
      • Natural killer cell surface protein P1-40
      • NKR-P1 34
      • NK1.1
      • NKR-P1.9
      • NKR-P1 40
      • NKR-P1B
      • NKR-P1C
      Background InformationThe NK cell receptor protein 1 (NKR-P1), a.k.a. CD161, molecules represent a family of type II transmembrane C-type lectin-like receptors expressed predominantly by NK cells. A total of five murine NKR-P1-coding genes (Klrb1a/b/c/d/f) have been identified, with NKR-P1A/C/F (CD161a/c/f) functioning as stimulatory receptors that possess a charged transmembrane arginine esidue thought to be important for association with the FcRγ adaptor protein, and NKR-P1B/D as two inhibitory receptors that possess a consensus cytoplasmic ITIM (L/VxYxxL/I/V) motif. The ITIM motif is shown to mediate NKR-P1B recruitment of Src homology 2 (SH2)-containing protein tyrosine phosphatase-1 (SHP-1) in a phosphorylation-dependent manner. All murine NKR-P1 proteins possess a Cys-X-Cys-Pro (CxCP) motif that mediates association with the Src-related nonreceptor protein tyrosine kinase p56lck. Both NKR-P1B and NKR-P1C functionally associate with p56lck, while mutation of the CxCP motif abolishes NKR-P1B/C-mediated signal transduction. Likewise, mutation of ITIM motif abolishes NKR-P1B SHP-1 association as well as NKR-P1B-dependent inhibitory signaling.
      References
      Product Information
      FormatPurified
      PresentationPurified mouse monoclonal IgG2aκ antibody in PBS without preservatives.
      Quality LevelMQ100
      Applications
      ApplicationAnti-NK1.1 (mouse) Antibody, clone PK136, Azide Free is an antibody against NK1.1 (mouse) for use in Flow Cytometry, Activity Assay, Immunohistochemistry, Immunoprecipitation.
      Key Applications
      • Flow Cytometry
      • Activity Assay
      • Immunoprecipitation
      Application NotesActivity Assay: Representative lots, when administered to mice via i.p. injection, depleted splenic natural killer (NK) cell activity in a dose-dependent manner (Xiao, T.Z., et al. (2012). Biol. Blood Marrow Transplant. 18(2):200-209; Seaman, W.E., et al. (1987). J. Immunol. 138(12):4539-4544).
      Activity Assay: A representative lot activated target cell killing by cross-linking NK cell surface NK1.1 (NKR-P1C) and target cell surface Fc receptor. Ab-induced redirected lysis (AIRL) assay employing NK cells expressing both NKR-P1B and NKR-P1C prevented NK cell cytotoxicity activation by clone PK136 (Carlyle, J.R., et al. (1999). J. Immunol. 162(10):5917-5923).
      Immunoprecipitation Analysis: A representative lot co-immunoprecipitated SHP-1, but not SHP-2 or SHIP, from Swiss NIH mouse-derived MNK-1 pre-NK cells upon upregulating NKR-P1B intracellular ITIM motif tyrosine phosphorylation by pervanadate treatment (Carlyle, J.R., et al. (1999). J. Immunol. 162(10):5917-5923).
      Flow Cytometry Analysis: A representative lot immunostained the surface of Jurkat transfectants expressing C57BL/6J (B6) mouse-derived NKR-P1B/CD161b or Swiss NIH (Sw) mouse-derived NKR-P1C/CD161c/NK1.1, but not Jurkat transfectants expressing B6-derived NKR-P1A/CD161a (Carlyle, J.R., et al. (1999). J. Immunol. 162(10):5917-5923).
      Flow Cytometry Analysis: A representative lot immunostained NKR-P1B/CD161b-expressing NK cells from Swiss NIH (Sw) mouse strain, NKR-P1C/CD161c/NK1.1-expressing NK cells from C57BL/6J (B6), as well as (B6 3 Sw)F1 cross-strain-derived NK cells expressing both NKR-P1B and NKR-P1C (Carlyle, J.R., et al. (1999). J. Immunol. 162(10):5917-5923).
      Note: Clone PK136 is also available in the following conjugated forms for flow cytometry application, APC (MABF1487 & MABF1488), FITC (MABF1489 & MABF1490), PE (MABF1491), PerCP-Cy5.5 (MABF1493 & MABF1494). redFluor™ 710 (MABF1496 & MABF1497).
      Biological Information
      ImmunogenMouse spleen and bone marrow cells (Koo, G.C., and Peppard, J.R. (1984). Hybridoma. 3(3):301-303).
      EpitopeExtracellular domain.
      ClonePK136
      ConcentrationPlease refer to lot specific datasheet.
      HostMouse
      SpecificityClone PK136 recognizes murine NKR-P1B/CD161b (UniProt P27812) and NK1.1/NKR-P1C/CD161c (UniProt P27814), but not CD161a/NKR-P1A (P27811). Upon activation by PK136 binding, NKR-P1C/NK1.1 signals to activate, while NKR-P1B signals to suppress, NK cells for cytotoxic killing of target cells (Carlyle, J.R., et al. (1999). J. Immunol. 162(10):5917-5923). Epitope is present in both spliced isoforms of murine NK1.1/CD161c reported by UniProt (P27814). Clone PK136 does not react with CD161a (by Klrb1a gene) or C57BL/6 mouse strain-derived CDC161b variant (by Klrb1b gene, also known as Klrb1d). There exists a fifth murine CD161 gene Klrb1f, reactivity of this mAb toward this gene product has not been established.
      IsotypeIgG2aκ
      Species Reactivity
      • Mouse
      Antibody TypeMonoclonal Antibody
      Entrez Gene Number
      Gene Symbol
      • Klrb1b
      • Ly55b
      • Nkrp1b
      • Klrb1c
      • Ly55c
      • Nkrp1c
      Purification MethodProtein G purified.
      UniProt Number
      Molecular Weight25.08 kDa (NK1.1/CD161c isoform 1) and 24.77 kDa (NK1.1/CD161c isoform 2) calculated.
      Physicochemical Information
      Dimensions
      Materials Information
      Toxicological Information
      Safety Information according to GHS
      Safety Information
      Product Usage Statements

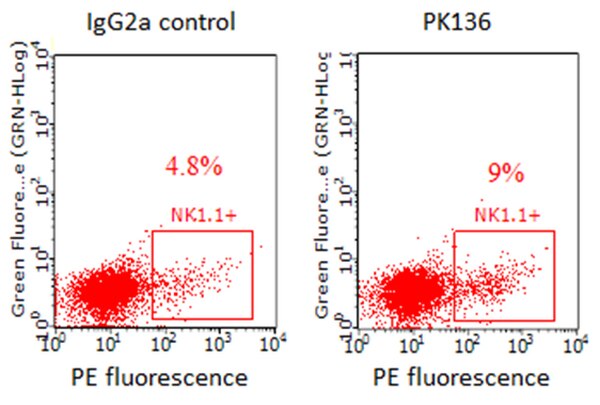

      Quality AssuranceEvaluated by Flow Cytometry in mouse splenocytes.

      Flow Cytometry Analysis: 1.0 µg of this antibody detected NK1.1-positive mouse splenocytes.
      Usage Statement
      • Unless otherwise stated in our catalog or other company documentation accompanying the product(s), our products are intended for research use only and are not to be used for any other purpose, which includes but is not limited to, unauthorized commercial uses, in vitro diagnostic uses, ex vivo or in vivo therapeutic uses or any type of consumption or application to humans or animals.
      Storage and Shipping Information
      Storage ConditionsStable for 1 year at -20°C from date of receipt.
      Handling Recommendations: Upon receipt and prior to removing the cap, centrifuge the vial and gently mix the solution. Aliquot into microcentrifuge tubes and store at -20°C. Avoid repeated freeze/thaw cycles, which may damage IgG and affect product performance.
      Packaging Information
      Material Size100 μg
      Transport Information
      Supplemental Information
      Specifications
      Global Trade Item Number
      Catalogue Number GTIN
      MABF1495Z 04055977350982
