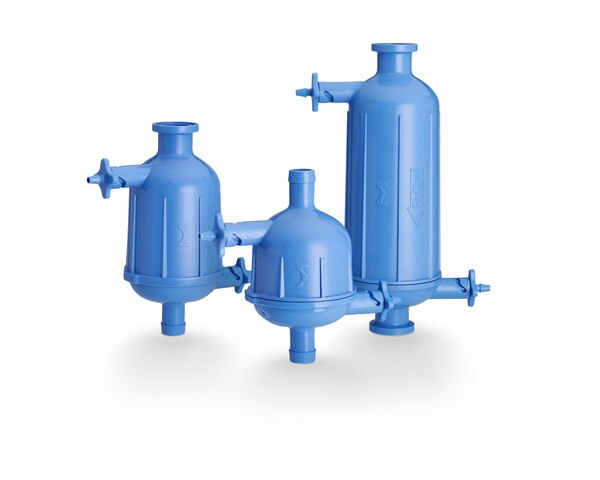

KAFTG003FF3 Millipore Express® Ace 0.2µm, Opticap XL 300 Capsule; Fittings 3/4 in. TC/TC, Gamma Compatible

KAFTG003FF3
3  double easy-open bag
Retrieving price...
Price could not be retrieved
Minimum Quantity is a multiple of
Maximum Quantity is
Upon Order Completion More Information
You Saved ()

—
Request Pricing
—
Limited Availability Limited Availability
In Stock
Discontinued
Limited Quantities Available
Availability to be confirmed
    Remaining : Will advise
      Remaining : Will advise
      Will advise
      Contact Customer Service
      Contact Customer Service



      Contact Customer Service

      Overview

      Replacement Information
      Description
      Catalogue NumberKAFTG003FF3
      Trade Name
      • Millipore Express®
      DescriptionMillipore Express® Ace 0.2µm, Opticap XL 300 Capsule; Fittings 3/4 in. TC/TC, Gamma Compatible
      References
      Product Information
      Device ConfigurationCapsule
      Maximum Inlet Pressure, bar (psi)6900 mbar (100 psi) intermittent @ 4 °C and 25 °C; 5500 mbar (80 psi) @ 4 °C and 25 °C; 1724 mbar (25 psi) @ 80 °C
      Good Manufacturing PracticesThese products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
      Quality LevelMQ400
      Applications
      Key Applications
      • Sterile Filtration
      Biological Information
      Bacterial EndotoxinsAqueous extraction contains ≤0.25 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) Test
      MediaMillipore Express® Ace
      SterilizationCompatible to 45 kGy and may be autoclaved for 3 cycles of 60 minutes at 123 °C. (Cannot be steam sterilized in-line)
      Bacterial RetentionSamples were quantitatively retentive of a minimum Brevundimonas diminuta ATCC 19146 challenge concentration of 1 x 10⁷ CFU/cm² using ASTM® F838 methodology.
      WettabilityHydrophilic
      Physicochemical Information
      Pore Size0.2 µm
      Air Diffusion at 23 °C≤4.2 cc/min @ 2.8 bar (40 psig) through a water wet membrane
      Bubble Point at 23 °C≥4140 mbar (60 psi) air with water
      ≥1320 mbar (19.1 psi) nitrogen with 70/30% IPA/water mixture
      Indirect Food AdditiveAll component materials meet the FDA Indirect Food Additive requirements cited in 21 CFR 177-182.
      Maximum Differential PressureForward: 6900 mbar (100 psi) intermittent @ 25 °C; 5500 mbar (80 psi) @ 25 & °C; 1000 mbar (15 psi) @ 80 °C. Reverse: 2100 mbar (30 psi) @ 25 °C
      Non-Fiber ReleasingMillipore Express® Ace 0.2µm membrane meet the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6).
      TOC/ConductivityIrradiated filter effluent meets the WFI requirements of USP <643> for Total Organic Carbon and USP <645> for Water Conductivity after a water flush of: 2.5 L
      USP Bacterial EndotoxinsA sample aqueous extraction contains less than 0.25 EU/mL as determined by the Limulus Amebocyte Lysate (LAL) test.
      Dimensions
      Cartridge Nominal Length4.7 in. (11.9 cm)
      Diameter5.6 cm (2.2 in.)
      Filtration Area0.050 m² (0.538 ft²)
      Device SizeOpticap XL 300
      Materials Information
      Chemistry
      • Hydrophilic Polyethersulfone (PES)
      Device Material
      • Membrane: Hydrophilic PES
        Core: Polysulfone
        Structural Components: Irradiation compatible polypropylene
        O-ring: silicone
      Support MaterialPolyethylene
      Toxicological Information
      Safety Information according to GHS
      Safety Information
      Product Usage Statements
      Storage and Shipping Information
      Packaging Information
      Material Size3
      Material Packagedouble easy-open bag
      Transport Information
      Supplemental Information
      Specifications
      Global Trade Item Number
      Catalogue Number GTIN
      KAFTG003FF3 04065273420722
