About This Item

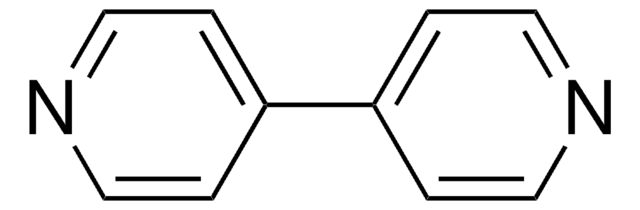

Empirical Formula (Hill Notation):
C10H8N2
CAS Number:
Molecular Weight:
156.18
UNSPSC Code:
12352103
NACRES:
NA.23
PubChem Substance ID:
EC Number:
209-036-3
Beilstein/REAXYS Number:
113176
MDL number:
InChI key
MWVTWFVJZLCBMC-UHFFFAOYSA-N
InChI
1S/C10H8N2/c1-5-11-6-2-9(1)10-3-7-12-8-4-10/h1-8H
SMILES string
c1cc(ccn1)-c2ccncc2
assay
98%
form
powder
bp
305 °C (lit.)
mp
109-112 °C (lit.)
Quality Level
Looking for similar products? Visit Product Comparison Guide
Related Categories
General description
4,4′-Dipyridyl (BPY) is an organic linker mainly used in the preparation of coordination polymers. It is a pyridine derivative in which pyridyl groups can rotate along the carbon-carbon structure. It can be used as a catalyst for photoelectrochemical reduction.
4,4′-bpy is popularly used to bridge metal centers to form coordination polymers with novel properties. 4,4′-bpy ligands can mediate electronic effects between paramagnetic metals ions by stabilizing the magnetic ordering.
Application
4,4′-Dipyridyl (4,4′-bipyridine, 4,4′-bpy) and Co (NCS)2 solutions were interdifussed to form single crystals Co(NCS)2(4,4′-bipy)2·2(CH3CH2)2O and Co(NCS)2(4,4′-bipy)2·2(CH3CH2)2O.
BPY is a ligand that forms a network between the transition metals which results in the formation of coordination bond. Hybrid nanosheets can be prepared by using a coordination polymer and BPY as a complex linker. It consists of two active sites which can be used for the development of drugs.
signalword
Danger
hcodes
pcodes
Hazard Classifications
Acute Tox. 3 Oral
Storage Class
6.1C - Combustible acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
ppe
Eyeshields, Faceshields, Gloves, type P2 (EN 143) respirator cartridges
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Kumar Biradha et al.
Chemical communications (Cambridge, England), (40)(40), 4169-4179 (2006-10-13)
Coordination polymers have attracted an enormous interest among chemists due to their novel physical and chemical properties. This review describes the role of 4,4'-bipyridine in discovering various coordination polymers with novel topologies that range from one-dimensional to three dimensional. The
Crystal engineering of coordination polymers using 4, 4′-bipyridine as a bond between transition metal atoms.
Biradha K, et al.
Chemical Communications (Cambridge, England), 138(40), 4169-4179 (2006)
Ultrafast photoinduced interfacial proton coupled electron transfer from cdse quantum dots to 4, 4′-bipyridine.
Chen J, et al.
Journal of the American Chemical Society, 138(3), 884-892 (2016)
Spin canting and metamagnetism in a 3D homometallic molecular material constructed by interpenetration of two kinds oc cobalt(II)-coordination polymer sheets
Zheng HM, et al.
Angewandte Chemie (International Edition in English), 44(20) (2005)
Investigation of supramolecular interaction in 4, 4′-bipyridine crystal by hydrostatic pressure spectroscopies.
Li A, et al.
Spectrochimica Acta. Part A, Molecular and Biomolecular Spectroscopy, 202(40), 70-75 (2018)
