Nitrilotri(methylphosphonic acid)

≥95% (T)

Synonym(s):

ATMP, Aminotris(methylenephosphonic acid), [Bis(phosphonomethyl)amino]methylphosphonic acid

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Linear Formula:

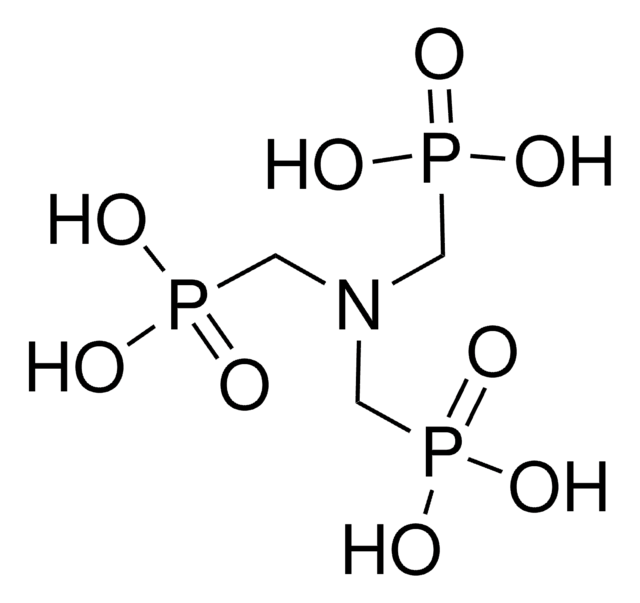

N[CH2PO(OH)2]3
CAS Number:
6419-19-8
Molecular Weight:
299.05
UNSPSC Code:
12352100
NACRES:
NA.22
PubChem Substance ID:
57652427
EC Number:
229-146-5
Beilstein/REAXYS Number:
1715724
MDL number:
MFCD00002138
Assay:
≥95% (T)
Form:
crystals

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Nitrilotri(methylphosphonic acid), ≥95% (T)

InChI key

YDONNITUKPKTIG-UHFFFAOYSA-N

InChI

1S/C3H12NO9P3/c5-14(6,7)1-4(2-15(8,9)10)3-16(11,12)13/h1-3H2,(H2,5,6,7)(H2,8,9,10)(H2,11,12,13)

SMILES string

OP(O)(=O)CN(CP(O)(O)=O)CP(O)(O)=O

assay

≥95% (T)

form

crystals

mp

~215 °C (dec.)

functional group

amine

Quality Level

100

Related Categories

Application

Nitrilotri(methylphosphonic acid) is a common chelating agent used in synthetic chemistry. Some of the other applications include:
  • Preparation of hexagonal porous three-dimensional structures encapsulating a template, layered structures with intercalated templates or linear polymers.
  • Synthesis of metal-organic frameworks in combination with uranyl nitrate.
  • Preparation of ingredient of anticorrosive protective coatings on the steel surface.
  • ATMP can also be employed as a scale inhibitor during squeeze treatments in oilfield operations.

Other Notes

Powerful complexing agent

pictograms

Corrosion
GHS05

signalword

Warning

hcodes

H290

Hazard Classifications

Met. Corr. 1

Storage Class

8A - Combustible corrosive hazardous materials

wgk

WGK 1

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BCCN3273
BCCJ9521
BCCJ6393
BCCH2345
BCCG7689

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

[Hygienic establishment of maximum permissible concentrations of nitrilotrimethylphosphonic acid and a copper-containing complex in reservoir water].
R A Suleĭmanov et al.
Gigiena i sanitariia, (2)(2), 67-68 (1984-02-01)
Synthesis, structure, and properties of nitrilo-tris (methylenephosphonato)-triaquairon (II){Fe [μ-NH (CH 2 PO 3 H) 3](H 2 O) 3}, as an ingredient of anticorrosive protective coatings on the steel surface.
Somov N V, et al.
Crystallography Reports, 60(6), 853-859 (2015)
Nitrilotris (methylenephosphonato) potassium K [μ6-NH (CH2PO3) 3H4]: Synthesis, structure, and the nature of the K?O chemical bond.
Somov N V, et al.
Crystallography Reports, 61(4), 606-610 (2016)
Yuta Suzuki et al.
Nucleic acids symposium series (2004), (52)(52), 379-380 (2008-09-09)
Only one phosphodiester linkage in long DNA was hydrolyzed simply by using two components: oligonucleotide-multiphosphonate conjugates ("gapmers") and Ce(IV)/EDTA (Fig. 1).
P K Bali et al.
Archives of biochemistry and biophysics, 281(2), 251-256 (1990-09-01)
The kinetics of iron removal from human serum diferric transferrin by nitrilotris(methylenephosphonic acid) (NTP) and pyrophosphate (PPi) have been studied in 0.1 M, pH 7.4, N-(2-hydroxyethyl)piperazine-N'-2-ethanesulfonate buffer at 25 degrees C using urea/polyacrylamide gel electrophoresis. The four microscopic rate constants
