939927
1,3-Propanediol cyclic sulfate
≥99.5%, ≤5 μmol/g acid, anhydrous, battery grade
Synonym(s):
1,3,2-Dioxathiane 2,2-dioxide, 1,3,2-dioxathiane-2,2-dione, PCS battery additive, Trimethylene sulfate
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
Empirical Formula (Hill Notation):
C3H6O4S
CAS Number:
Molecular Weight:
138.14
UNSPSC Code:
12352100
MDL number:
NACRES:
NA.21
Quality Level
grade
anhydrous, battery grade
assay
≥99.5%
form
powder or crystals
impurities
≤100 ppm H2O, ≤5 μmol/g acid
bp
153 °C
mp
58-62 °C (lit.), 59-62 °C
solubility
soluble (H2O: highly soluble(lit.)), soluble (carbonates: soluble(lit.)), soluble (glymes: soluble(lit.))
application(s)
battery manufacturing
SMILES string

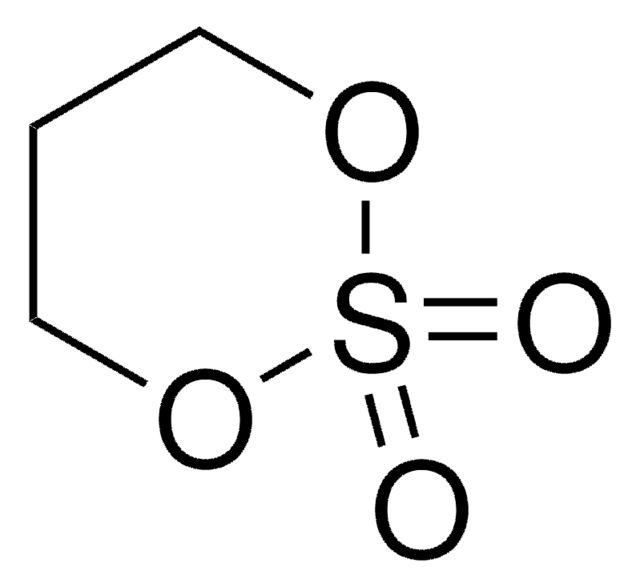

O=S1(=O)OCCCO1
InChI
1S/C3H6O4S/c4-8(5)6-2-1-3-7-8/h1-3H2
InChI key
OQYOVYWFXHQYOP-UHFFFAOYSA-N
General description
1,3-propanediol cyclic sulfate, abbreviated PCS, is a white solid at room temperature. PCS is soluble in water, carbonates, glymes, and many of the polar solvents used in battery liquid electrolytes.
Application
1,3-propanediol cyclic sulfate is used as a film-forming additive in battery liquid electrolytes and hybrid liquid-solid electrolytes, at concentrations up to 3%. During battery operation, 1,3-propanediol cyclic sulfate (PCS) is sacrificially reduced on the surface of the anode to form a protective and ionically conductive SEI layer and is sacrificially oxidized on the cathode to form a protective and ionically conductive CEI layer. Recent results show PCS helps form a sulfur-rich layer on graphite, NMC, LiCoO2, and LiMNO electrodes. These layers significantly improve the battery’s cycling performance at high temperatures and inhibits the production of gas.[] Our battery grade PCS meets specifications for high purity, low moisture, and low acid content to facilitate optimal performance of your electrolyte formulation.
Still not finding the right product?
Explore all of our products under 1,3-Propanediol cyclic sulfate
signalword
Danger
hcodes
Hazard Classifications
Carc. 2 - Eye Dam. 1 - Muta. 2 - Skin Sens. 1B
Storage Class
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Film-forming mechanism of 1,3-propanediolcyclic sulfate as a bifunctional additive for 4.45 V graphite/LiCoO2 batteries
Wang S, et al.
Journal of Power Sources, 559, 232656-232656 (2023)
