198218

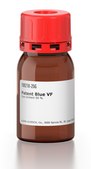

Patent Blue VF

Dye content 50 %

Synonym(s):

Acid Blue 1, Sulfan Blue

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

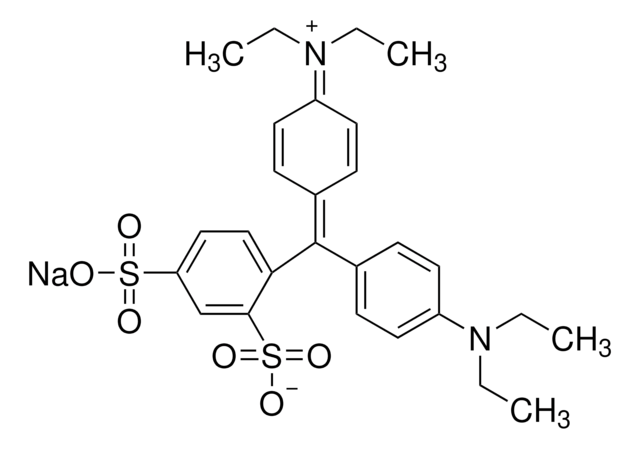

Empirical Formula (Hill Notation):
C27H31N2NaO6S2
CAS Number:
129-17-9
Molecular Weight:
566.66
PubChem Substance ID:
24851867
UNSPSC Code:
12171500
Colour Index Number:
42045
NACRES:
NA.47
EC Number:
204-934-1
MDL number:
MFCD00012119
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

form

powder

Quality Level

200

composition

Dye content, 50%

technique(s)

microbe id | staining: suitable

solubility

H2O: 1 mg/mL

ε (extinction coefficient)

≥50000 at 635-641 nm in H2O, ≥5300 at 408-414 nm in H2O, ≥7500 at 308-314 nm in H2O

λmax

635 nm (2nd), -410 nm

application(s)

diagnostic assay manufacturing
hematology
histology

storage temp.

room temp

SMILES string

[Na+].CCN(CC)c1ccc(cc1)\C(=C2/C=CC(\C=C2)=[N+](\CC)CC)c3ccc(cc3S([O-])(=O)=O)S([O-])(=O)=O

InChI

1S/C27H32N2O6S2.Na/c1-5-28(6-2)22-13-9-20(10-14-22)27(21-11-15-23(16-12-21)29(7-3)8-4)25-18-17-24(36(30,31)32)19-26(25)37(33,34)35;/h9-19H,5-8H2,1-4H3,(H-,30,31,32,33,34,35);/q;+1/p-1

InChI key

SJEYSFABYSGQBG-UHFFFAOYSA-M

Application

Patent Blue VF has been used:
  • in combination with 99mTc phytate to detect sentinel lymph node (SLN) in early stage cervical cancer patients.
  • to detect heat shock protein (HSP) gp96 induced draining lymph nodes (LNs) in mice.
  • to detect the effect of Asn-Gly-Arg (NGR)-tumor necrosis factor (TNF) on tumor perfusion in murine model.

Biochem/physiol Actions

Patent Blue VF dye is a violet colored powder. It has been used in cosmetic coloring.

Storage Class

11 - Combustible Solids

wgk

WGK 1

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
SHBT5174
SHBS8500
SHBS2509
SHBR9843
SHBQ2577

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Synergistic antitumor activity of cisplatin, paclitaxel, and gemcitabine with tumor vasculature-targeted tumor necrosis factor-alpha.
Sacchi A
Clinical Cancer Research, 12(1), 175-182 (2006)
Jeffrey How et al.
Gynecologic oncology, 127(2), 332-337 (2012-08-23)
The objective of this study is to evaluate the detection rate and diagnostic accuracy of sentinel lymph node (SLN) mapping using intra-operative cervical injection of filtered 99mTc-sulfur colloid (99mTc-SC) and patent blue in patients with endometrial cancer. Prospective evaluation of
Blue dyes in medicine--a confusing terminology.
Kathrin Scherer et al.
Contact dermatitis, 54(4), 231-232 (2006-05-03)
View All Related Papers
