446084

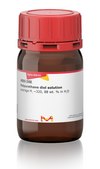

Polyurethane diol solution
average Mn ~320, 88 wt. % in H2O
Synonym(s):
PU Diol Concentrate
Sign In to View Organizational & Contract Pricing.
Select a Size
All Photos(3)
About This Item
Product Name
Polyurethane diol solution, average Mn ~320, 88 wt. % in H2O
form
liquid
mol wt
average Mn ~320
composition
urethane, 37%
concentration
88 wt. % in H2O
refractive index
n20/D 1.47
viscosity
8,000 cP(25 °C)(lit.)
acid number
0.6 mg KOH/g(dry basis)
hydroxyl value
350 mg KOH/g(dry basis)
solubility
H2O: soluble
density
1.14 g/mL at 25 °C
Quality Level
Related Categories
Application
Modifier for water-soluble resins and emulsions in wood, appliance and auto coatings.
PUD may be used to control the cohesion of silver (Ag) inks which can be printed to form transparent conducting electrodes. These printed electrodes can be used in the fabrication of organic solar cells (OSCs). It may also be used as an electrolyte for dye sensitized solar cells (DSSCs).
Features and Benefits
Hydrolytically stable, improves flow and leveling and gives high film hardness.
General description
Polyurethane diol solution (PUD) is a synthetic polymeric solution that is used as a modifier that is formed by condensation of isocyanates and polyalcohols. It modifies water soluble resins and emulsions which can be used in automotive coating applications.
Other Notes
This product contains both primary and secondary hydroxyl functionality.
Physical form
Dihydroxy-functional oligomer. Aliphatic urethane of proprietary composition
Storage Class
10 - Combustible liquids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
ppe
Eyeshields, Gloves, type N95 (US)
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
High efficient plastic solar cells fabricated with a high-throughput gravure printing method.
Kopola P, et al.
Solar Energy Materials and Solar Cells, 94(10), 1673-1680 (2010)
Roll-offset printed transparent conducting electrode for organic solar cells.
Kim I, et al.
Thin Solid Films, 580(2), 21-28 (2015)
Isolation of a Pseudomonas aeruginosa strain from soil that can degrade polyurethane diol.
Mukherjee K, et al.
Biodegradation, 22(2), 377-388 (2011)
Effects of Sodium Iodide (NaI) on Electro-Conductivity with Polyurethane-Diol Organic Electrolyte for Dye-Sensitized Solar Cell (DSSC).
Solid State Phenomena, 268(10), 358-362 (2017)
