521238

PDGFRβ/RAF Kinase Inhibitor

The PDGFRβ/RAF Kinase Inhibitor controls the biological activity of PDGFRβ/RAF Kinase. This small molecule/inhibitor is primarily used for Phosphorylation & Dephosphorylation applications.

Synonym(s):

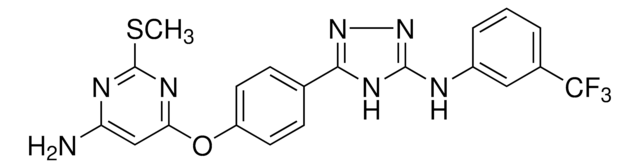

PDGFRβ/RAF Kinase Inhibitor, PDGFR Tyrosine Kinase Inhibitor XXII, 6-(4-(5-(3-(Trifluoromethyl)phenylamino)-4 H-1,2,4-triazol-3-yl)phenoxy)-2-(methylthio)pyrimidin-4-amine

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C20H16F3N7OS
CAS Number:
877874-85-6
Molecular Weight:
459.45
UNSPSC Code:
12352200
MDL number:
MFCD27665470
Assay:
≥95% (HPLC)
Form:
solid
Quality level:
100
Storage condition:
OK to freeze, protect from light

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

SMILES string

NC1=CC(OC2=CC=C(C3=NN=C(NC4=CC(C(F)(F)F)=CC=C4)N3)C=C2)=NC(SC)=N1

assay

≥95% (HPLC)

form

solid

manufacturer/tradename

Calbiochem®

storage condition

OK to freeze, protect from light

color

beige

solubility

DMSO: soluble

shipped in

ambient

storage temp.

−20°C

Quality Level

100

General description

An orally bioavailable amino-triazole compound that is shown to bind to the inactive conformations of both PDGFRβ and Raf kinases (allosteric, Type II inh), and acts as a potent inhibitor of Flt3, Kit, PDGFRα and PDGFRβ (Kd = 52, 170, 300 and 520 nM, respectively) with selectivity over B-Raf, p38α, FGFR2 and VEGFR2 (Kd >10 µM) in a multi-kinase panel. Completely blocks the phosphorylations of MEK-1/2 S217/S221, ERK-1/2 T202/Y204 in FGF-stimulated HUVECs, PDGFRβ in PDGF-BB-stimulated VSMCs, ERK-1/2 T202/Y204 in 1205Lu-B Raf V600E cells, and C-Raf S338 at 10 µM. Reduces FGF-induced angiogenesis in mouse Matrigel model (50 mg/kg, i.p., bid) and selectively induces apoptosis in the endothelium; further, suppresses orthotopic renal cell carcinoma growth in mice (100 mg/kg, p.o., qd).

Packaging

Packaged under inert gas

Preparation Note

Following reconstitution, aliquot and freeze (-20°C). Stock solutions are stable for up to 3 months at -20°C.

Other Notes

Murphy, E.A., et al. 2010. Proc. Natl. Acad. Sci. USA107, 4299.

Legal Information

CALBIOCHEM is a registered trademark of Merck KGaA, Darmstadt, Germany

Disclaimer

Toxicity: Standard Handling (A)

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable
