Merck

32160

Diethylene glycol

≥99.0% (GC), viscous liquid (clear), suitable for GC/GC, puriss. p.a.

Synonym(s):

2,2′-Oxydiethanol, 2-Hydroxyethyl ether, Bis(2-hydroxyethyl) ether, Diglycol

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

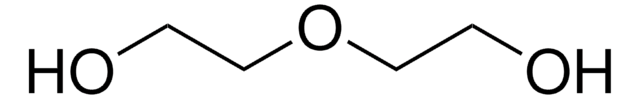

Linear Formula:
(HOCH2CH2)2O
CAS Number:
111-46-6
Molecular Weight:
106.12
NACRES:
NA.21
PubChem Substance ID:
57648659
UNSPSC Code:
12352100
EC Number:
203-872-2
MDL number:
MFCD00002882
Beilstein/REAXYS Number:
969209
Assay:
≥99.0% (GC)
Technique(s):
GC/GC: suitable
Bp:
245  °C (473 °F)
245 °C (lit.)
Vapor pressure:
0.01 mmHg ( 20 °C)

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Diethylene glycol, puriss. p.a., ≥99.0% (GC), colorless

InChI key

MTHSVFCYNBDYFN-UHFFFAOYSA-N

InChI

1S/C4H10O3/c5-1-3-7-4-2-6/h5-6H,1-4H2

SMILES string

OCCOCCO

vapor density

2.14 (vs air)

vapor pressure

0.01 mmHg ( 20 °C)

description

non-ionic

grade

puriss. p.a.

assay

≥99.0% (GC)

form

viscous liquid (clear)

autoignition temp.

442 °F

expl. lim.

2-12.3 %

technique(s)

GC/GC: suitable

impurities

≤0.003% peroxides (as H2O2)
≤0.01% free acid (as CH3COOH)
≤0.1% water
≤0.8% ethylene glycol (HOCH2CH2OH)

color

colorless
APHA: ≤25

refractive index

n20/D 1.447 (lit.)
n20/D 1.447

Quality Level

200

bp

245  °C (473 °F)
245 °C (lit.)

mp

−10 °C (lit.)

density

1.116 g/mL at 20 °C
1.118 g/mL at 25 °C (lit.)

cation traces

Ca: ≤5 mg/kg
Cd: ≤1 mg/kg
Co: ≤1 mg/kg
Cr: ≤1 mg/kg
Cu: ≤1 mg/kg
Fe: ≤2 mg/kg
K: ≤20 mg/kg
Mg: ≤1 mg/kg
Mn: ≤1 mg/kg
Na: ≤20 mg/kg
Ni: ≤1 mg/kg
Pb: ≤1 mg/kg
Zn: ≤10 mg/kg

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

Diethylene glycol may be used for electrodeposition of cadmium sulfide (CdSe) films. It may be used to compose the fluoride ion electrolytes, for use in the preparation of self-organized titania nanotube arrays.

General description

Diethylene glycol (DEG) is formed as side reaction product during the esterification reaction of terephthalic acid with ethylene glycol. It readily forms complexes with 3d transition metal cations in the presence of alkaline hydroxide. Its solutions are widely employed for antifreeze and lubricating applications. Oxidative degradation of DEG with ozone by modified Fenton process (mixture of hydrogen peroxide and ferric salt) was described in a study.

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H302

Hazard Classifications

Acute Tox. 4 Oral

Storage Class

10 - Combustible liquids

wgk

WGK 1

flash_point_f

280.4 °F - closed cup

flash_point_c

138 °C - closed cup

ppe

Eyeshields, Faceshields, Gloves, type ABEK (EN14387) respirator filter

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BCCN8614
0000443306
0000443306
BCCN3374
0000427338

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Synthesis of ordered arrays of discrete, partially crystalline titania nanotubes by Ti anodization using diethylene glycol electrolytes.
Yoriya S, et al.
Journal of Materials Chemistry, 18(28), 3332-3336 (2008)
Formation of diethylene glycol as a side reaction during production of polyethylene terephthalate.
Hovenkamp SG and Munting JP.
Journal of Polymer Science Part A: Polymer Chemistry, 8(3), 679-682 (1970)
The physical properties of CdS thin films electrodeposited from aqueous diethylene glycol solutions.
Baranski AS, et al.
Journal of Applied Physics, 54(11), 6390-6394 (1983)
Daniela Caruntu et al.
Inorganic chemistry, 41(23), 6137-6146 (2002-11-12)
Study of the reactivity of 3d transition metal cations in diethylene glycol solutions revealed several key features that made it possible to develop a new method for synthesis of the nanocrystalline transition metal ferrites. The 3-7 nm particles of [MFe2O4]n[O2CR]m
Tuba Turan-Ertas et al.
Chemosphere, 47(3), 293-301 (2002-05-09)
This paper describes a study of oxidation of diethylene glycol (DEG) by ozone and modified Fenton process (hydrogen peroxide and ferric salt mixture) in aqueous solution. Both oxidation processes were able to oxidize relatively high concentrations of DEG effectively. DEG
