Merck

410497

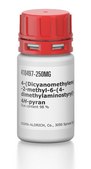

4-(Dicyanomethylene)-2-methyl-6-(4-dimethylaminostyryl)-4H-pyran

Dye content 98 %

Synonym(s):

DCM

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C19H17N3O
CAS Number:
51325-91-8
Molecular Weight:
303.36
NACRES:
NA.23
PubChem Substance ID:
24865530
UNSPSC Code:
12352103
EC Number:
257-137-6
MDL number:
MFCD00051341

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

4-(Dicyanomethylene)-2-methyl-6-(4-dimethylaminostyryl)-4H-pyran, Dye content 98 %

InChI key

YLYPIBBGWLKELC-RMKNXTFCSA-N

InChI

1S/C19H17N3O/c1-14-10-16(17(12-20)13-21)11-19(23-14)9-6-15-4-7-18(8-5-15)22(2)3/h4-11H,1-3H3/b9-6+

SMILES string

CN(C)c1ccc(\C=C\C2=CC(\C=C(C)O2)=C(\C#N)C#N)cc1

form

solid

composition

Dye content, 98%

mp

215-220 °C (lit.)

λmax

468 nm

OLED device performance

ITO/Alq3:DCM/Alq3/Mg:Ag

  • Color: red
  • Max. EQE: 1.3 %

ITO/TPD/Alq3:DCM (10%)/Alq3/Mg:Ag
  • Color: red
  • Max. Luminance: 150 Cd/m2

Quality Level

200

Related Categories

Application

DCM can be used as a laser dye to enhance the emission of distributed feedback (DFB) device by FÖrster resonance energy transfer (FRET). It may be used as a capping layer that allows the conversion of blue to red colored emission in organic light emitting diodes (OLED). DCM may also find potential applications in the enhancement of energy transfer of different devices like metal organic frameworks (MOFs), dye sensitized solar cells (DSSCs) and polarity sensors.

Features and Benefits

Voltage-tunable multicolor emission with enhanced luminance (~1000 cd/m2) was observed using varying amounts of DCM dye in a polymer light-emitting diode (PLED).

General description

4-(Dicyanomethylene)-2-methyl-6-(4-dimethylaminostyryl)-4H-pyran (DCM) is a red laser dye that consists of dicyanomethylene as an electron acceptor and dimethylaniline group as an electron donor. It has a π-conjugated 4H-pyran-4-ylidiene which bridges both the acceptor/donor groups. It can be used as a dopant and also in organic solid state lasers.

pictograms

FlameExclamation mark
GHS02,GHS07

signalword

Danger

Hazard Classifications

Acute Tox. 4 Inhalation - Eye Irrit. 2 - Flam. Sol. 1 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

4.1B - Flammable solid hazardous materials

wgk

WGK 3

flash_point_f

109.4 °F - closed cup

flash_point_c

43 °C - closed cup

ppe

Eyeshields, Gloves, type P3 (EN 143) respirator cartridges

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
SHBT0241
SHBM8496
MKBX0728V
MKBP5232V
79396PJV

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Tunable two-color luminescence and host-guest energy transfer of fluorescent chromophores encapsulated in metal-organic frameworks.
Yan D, et al.
Scientific reports, 4(3), 4337-4337 (2014)
Ashim Pramanik et al.
Journal of colloid and interface science, 565, 326-336 (2020-01-25)
The development of white light-emitting LED (WLED) is now one of the important demands of present society due to its energy saving feature. However, in this work, an ingenious strategy has been employed to develop Forster resonance energy transfer (FRET)
Tunable organic distributed feedback dye laser device excited through Forster mechanism.
Tsutsumi N and Hinode T
Applied Physics B: Lasers and Optics, 123(3), 93-93 (2017)
Arnab Halder et al.
Langmuir : the ACS journal of surfaces and colloids, 20(3), 653-657 (2005-03-19)
Solvation dynamics of 4-(dicyanomethylidene)-2-[p-(dimethylamino)styryl]-6-methyl-4H-pyran (DCM) is studied in a polypeptide-surfactant aggregate consisting of gelatin and sodium dodecyl sulfate (SDS) in potassium dihydrogen phosphate (KP) buffer. The average solvation time (tauS) in gelatin-SDS aggregate at 45 degrees C is found to
Solid state solvation effect and reduced amplified spontaneous emission threshold value of glass forming DCM derivative in PMMA films.
Vembris A, et al.
Journal of Luminescence, 158(7), 441-446 (2015)
