699195

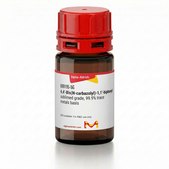

4,4′-Bis(N-carbazolyl)-1,1′-biphenyl

greener alternative

sublimed grade, 99.9% trace metals basis

Synonym(s):

4,4′-Bis(9-carbazolyl)-1,1′-biphenyl, 4,4-N,N′-Dicarbazole-1,1′-biphenyl, CBP, DCBP

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C36H24N2
CAS Number:
58328-31-7
Molecular Weight:
484.59
NACRES:
NA.23
PubChem Substance ID:
329762117
UNSPSC Code:
12352103
MDL number:
MFCD00093417

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI

1S/C36H24N2/c1-5-13-33-29(9-1)30-10-2-6-14-34(30)37(33)27-21-17-25(18-22-27)26-19-23-28(24-20-26)38-35-15-7-3-11-31(35)32-12-4-8-16-36(32)38/h1-24H

SMILES string

c1ccc2c(c1)n(-c3ccc(cc3)-c4ccc(cc4)-n5c6ccccc6c7ccccc57)c8ccccc28

InChI key

VFUDMQLBKNMONU-UHFFFAOYSA-N

grade

sublimed grade

description

Emissive Layer

assay

99.9% trace metals basis

form

solid

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

loss

0.5 wt. % loss on heating, 279.6 °C (typical, TGA)

mp

277.9 °C (typical, DSC), 281-285 °C

λmax

532 nm

orbital energy

HOMO 6 eV , LUMO 2.9 eV

greener alternative category

Enabling,

Quality Level

100

OLED device performance

ITO/HMPD/CBP:Ir(ppy)3 (6%)/Alq3/Mg:Ag

  • Color: green
  • Max. Luminance: 100 Cd/m2
  • Max. EQE: 9 %
, ITO/MoO3/CBP/CBP:Ir(ppy)2(acac) (6%)/TPBI/LiF/Al
  • Color: green
  • Max. Luminance: ~100000 Cd/m2
  • Max. EQE: 24.5 %
  • Turn-On Voltage: 3.65 V
, ITO/NPD/CBP:Ir(ppy)3 (6%)/Alq3/Mg:Ag
  • Color: green
  • Max. Luminance: 100000 Cd/m2
  • Max. EQE: 8 %
  • Turn-On Voltage: 4.3 V
, ITO/NPD/CBP:Ir(ppy)3 (6%)/niBr/Alq3/Mg:Ag
  • Color: green
  • Max. EQE: 0.3 %
  • Turn-On Voltage: 4.5 V
, ITO/NPD/CBP:Ir(ppy)3/BCP/Alq3/Mg:Al
  • Color: green
  • Max. Luminance: 100000 Cd/m2
  • Max. EQE: 8 %
  • Turn-On Voltage: 4.3 V
, ITO/PEDOT:PSS/NPD/CBP:Ir(piq)3 (6 wt%)/Alq3/LiF/Al
  • Color: red
  • Max. Luminance: 20000 Cd/m2
  • Max. EQE: 8.1 %
  • Turn-On Voltage: 5.9 V
, ITO/TAPC/CBP:FIrpic (6%)/PO14/LiF/Al
  • Color: blue
  • Max. EQE: 12.5 %

Looking for similar products? Visit Product Comparison Guide

Related Categories

General description

TGA/DSC lot specific traces available upon request
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Hole transport organic materials allow perfect energy level alignment with the absorber layer and therefore efficient charge collection, are prone to degradation in ambient conditions.Click here for more information.

pictograms

CorrosionExclamation mark
GHS05,GHS07

signalword

Danger

Hazard Classifications

Eye Dam. 1 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Regulatory Listings

Regulatory Listings are mainly provided for chemical products. Only limited information can be provided here for non-chemical products. No entry means none of the components are listed. It is the user’s obligation to ensure the safe and legal use of the product.

699195-1G: + 699195-1G-PW: + 699195-5G-PW: + 699195-5G: + 699195-VAR: + 699195-BULK:
