791539

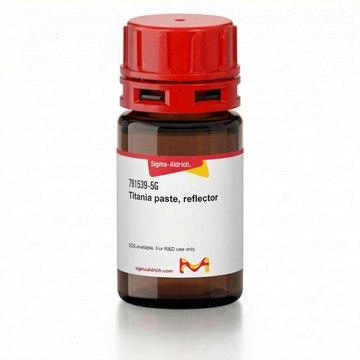

Titania paste, reflector

Synonym(s):

Greatcell Solar® WER2-O, TiO2 paste

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

UNSPSC Code:
12352103
PubChem Substance ID:
329768277
NACRES:
NA.23
MDL number:
MFCD00011269
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Crystal Structure: > 99% anatase (analysis carried out on starting material, prior to paste manufacture)

Quality Segment

100

form

paste (white)

concentration

20.0 wt. % (+/- 1.2 wt%)

avg. part. size

150-250 nm (scatter)

viscosity

15000-25000 mPa.s (Analysis carried out with 20mm 4 degree cone/plate; 40 s-1)

SMILES string

[Ti](=O)=O

InChI

1S/2O.Ti

InChI key

GWEVSGVZZGPLCZ-UHFFFAOYSA-N

General description

Titania paste, the reflector is a precursor for titania, that forms a mesoporous light scattering layer on the fluorine doped tin oxide (FTO) substrates. It is used in a variety of electrochemical devices to improve electron mobility and power efficiency.

Application

Light scattering titania paste can be coated on the primary transparent layer of TiO2 to form a bilayered titanium film. It can be used as a negative electrode for dye sensitized solar cells (DSSCs).
Scattering Reflector Titania Paste can be used in conjunction with Transparent Titania Paste for enhanced DSSC performance in applications where transparency is not required.
Scattering Titania Paste contains highly dispersed anatase scattering particles (150nm to 250nm). This paste produces a non-active scattering layer when applied onto a pre-printed active layer.
After drying; this paste must be fired – together with the pre-printed active layers – at or above 500°C. This results in an opaque sintered layer; with a thickness of ~3μm for one printed layer; when using a 90T mesh screen.

Storage: Store in the dark at 20°C

Legal Information

Product of Greatcell Solar® exclusive supplier of Sun2 products under license from EPFL.
Greatcell Solar® is a registered trademark of Greatcell Solar
Greatcell Solar is a registered trademark of Greatcell Solar

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H315,H319

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2

Storage Class

10 - Combustible liquids

wgk

WGK 1

flash_point_f

195.8 °F

flash_point_c

91 °C

Regulatory Listings

Regulatory Listings are mainly provided for chemical products. Only limited information can be provided here for non-chemical products. No entry means none of the components are listed. It is the user’s obligation to ensure the safe and legal use of the product.

Substances Subject to be Indicated Names

ishl_indicated

Substances Subject to be Notified Names

ishl_notified
