SPGPM10RJ

Millipore® Steripak Pressure Filter

pore size 0.22 μm, polyethersulfone membrane, 2-stack, pack of 3 ea

동의어(들):

Steripak-GP 0.22 μm, polyethersulfone, 2-Stack sterilized by Gamma irradiation, Steripak-GP Pressure Filter Unit, pressure filtration unit, pressure sterile filter unit, pressure sterile filtering unit

조직 및 계약 가격을 보려면 로그인를 클릭합니다.

크기 선택

보기 변경

제품정보 (DICE 배송 시 비용 별도)

UNSPSC Code:
41104914
NACRES:
NB.22
eCl@ss:
32031690
기술 서비스
도움이 필요하신가요? 저희 숙련된 과학자 팀이 도와드리겠습니다.
도움 문의

Quality Level

400

material

polyethersulfone membrane, styrene-acrylonitrile (SAN)

sterility

sterile

product line

Steripak

feature

holdup volume 2.7 mL, hydrophilic

packaging

pack of 3 ea

parameter

0.35 bar max. inlet pressure (5 psi) (Reverse), 45 °C max. temp., 5.2 bar max. inlet pressure (75 psi) (Forward)

technique(s)

sterile filtration: suitable

H

76 mm

diam.

9.9 cm

filter diam.

80 mm

filtration area

100 cm2

matrix

Express PLUS™

pore size

0.22 μm pore size

fitting

6 mm (1/4 in.) inlet stepped hose barb, outlet filling bell, 6 mm (1/4 in.) outlet stepped hose barb

shipped in

ambient

storage temp.

no temp limit

General description

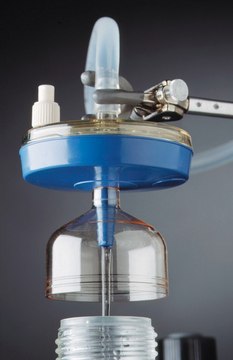

Steripak-GP filter units are designed for larger scale pressure-driven filtration of tissue culture media with or without serum. They are single use and are not autoclavable. The filter units come in two sizes, with the smaller unit able to filter up to 10 L and the larger up to 20 L. Both sizes utilize the low protein binding, fast flow 0.22 µm Millipore Express membrane. Each unit has an integral filling bell for bottle-top use and a manually operated upstream air vent to prevent membrane air locking. They are supplied sterile and ready to connect to a pump or pressure vessel (not included).

Steripak-GP filter units are designed for larger scale, pressure-driven filtration of tissue culture media with or without serum. Each filter is for a single use and is not autoclavable. The filter units come in two sizes with the smaller unit able to filter up to 10 L and the larger up to 20 L.

Features & Benefits:
- Millipore Express PLUS membrane for fastest flow rates and low protein binding
- Larger scale, pressure-driven filtration device for faster flow rates speeds time-consuming, large-volume filtrations
- 10 L and 20 L capacity sizes for maximum laboratory-scale filtration options
- Manually operated top air vent to prevent air lock stop of flow
- Filling bell for cleaner filling environment around the opening of the receptacle bottle

Applications:
Sterilization of Aqueous Solutions, Media Preparation, Buffer Preparation

Application

For Research Use Only

Biochem/physiol Actions

Pressure

Physical form

Color Code: Clear inlet/blue outlet

Preparation Note

Sterilization Method
Gamma irradiation

Other Notes

Directions for Use
  • Organism Retention: Microorganisms
  • Mode of Action: Filtering
  • Application: Sterile Filtration
  • Intended Use: Sterilization of Aqueous Solutions, Media Preparation, Buffer Preparation
  • Instructions for Use: Please refer to Instructions for Use section of Steripak user guide
  • Storage Statement: Store in dry location
  • Disposal Statement: Dispose of in accordance with applicable federal, state and local regulations.

Legal Information

EXPRESS PLUS is a trademark of Merck KGaA, Darmstadt, Germany
Millipore is a registered trademark of Merck KGaA, Darmstadt, Germany
