SAMPHV001

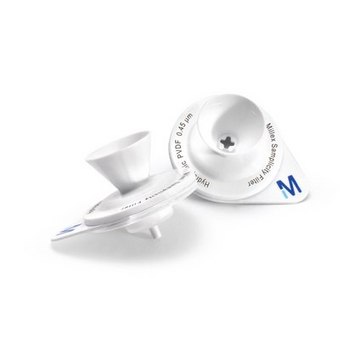

Millex Samplicity® filter
PVDF membrane, pore size 0.45 μm, diam. 25 mm, non-sterile, hydrophilic
Synonym(s):
0.45 μm PVDF syringe filter, Durapore® PVDF syringe filter, Millex-HV syringe filter, disposable syringe filter, syringe filter
Select a Size
About This Item
material
PVDF membrane, high-density polyethylene
sterility
non-sterile
product line
Millex™
feature
hydrophilic
manufacturer/tradename
Samplicity®
technique(s)
HPLC: suitable
diam.
25 mm
volume
1.7 mL
pore size
0.45 μm pore size
fitting
inlet funnel (Easy loading), outlet tip (for smooth transfer to HPLC vials)
shipped in
ambient
General description
Overview of Millex Samplicity® Filters for the Samplicity® G2 System
- Samplicity® G2 Filtration System enables vacuum driven filtation of up to 8 samples at once, directly into HPLC vials
- Filtration for HPLC sample prep without syringes
- Millex Samplicity®Filters provide integrated funnels and filters for easiest sample loading
Application
Legal Information
Certificates of Analysis (COA)
Search for Certificates of Analysis (COA) by entering the products Lot/Batch Number. Lot and Batch Numbers can be found on a product’s label following the words ‘Lot’ or ‘Batch’.
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Related Content
The Samplicity® filtration system was developed to filter up to 8 samples directly into standard HPLC vials using vacuum-based filtration. The samples can then be used in downstream HPLC analysis. Given the high sensitivity of high performance liquid chromatography (HPLC) and ultra-high pressure liquid chromatography (UHPLC) analyses, it is critical to ensure that the filtered sample is not contaminated with extractables. This application note reports the results of tests for extractables from Millex Samplicity® LCR (0.45 μm hydrophilic PTFE) and LG (0.20 μm hydrophilic PTFE) filters using three commonly used HPLC detectors. The detectors used were an ultraviolet/visible (UV-Vis) spectrophotometer, a mass spectrometer and a fluorescence detector.
Because of its high sensitivity and extreme versatility, mass spectrometry has become a popular technique for identifying and quantifying molecules within complex mixtures, in diverse research areas that range from systems biology and proteomics to environmental analysis. Successful mass spectrometry requires extremely areful sample preparation, in order to avoid complexity of the mixtures being analyzed. EMD Millipore supports researchers using mass spectrometry with tools or multiple steps of the workflow, including purification, clarification, and analysis.
