Merck

M6035

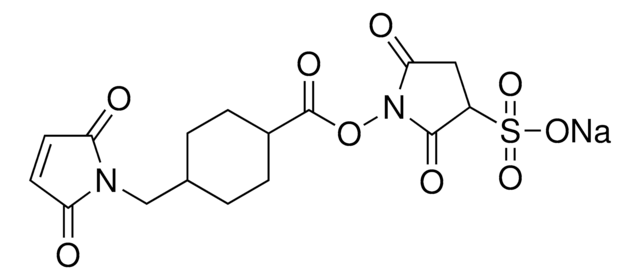

4-(N-Maleimidomethyl)cyclohexane-1-carboxylic acid 3-sulfo-N-hydroxysuccinimide ester sodium salt

powder

Synonym(s):

Sulfo-SMCC

Sign In to View Organizational & Contract Pricing.

Select a Size

All Photos(4)

About This Item

Empirical Formula (Hill Notation):
C16H17N2NaO9S
CAS Number:
92921-24-9
Molecular Weight:
436.37
NACRES:
NA.47
PubChem Substance ID:
24897071
UNSPSC Code:
12171500
MDL number:
MFCD00054978

Product Name

4-(N-Maleimidomethyl)cyclohexane-1-carboxylic acid 3-sulfo-N-hydroxysuccinimide ester sodium salt, powder

InChI

1S/C16H18N2O9S.Na/c19-12-5-6-13(20)17(12)8-9-1-3-10(4-2-9)16(23)27-18-14(21)7-11(15(18)22)28(24,25)26;/h5-6,9-11H,1-4,7-8H2,(H,24,25,26);/q;+1/p-1

SMILES string

O=C(N1CC2CCC(C(ON3C(CC(S(=O)(O[Na])=O)C3=O)=O)=O)CC2)C=CC1=O

InChI key

VUFNRPJNRFOTGK-UHFFFAOYSA-M

form

powder

reaction suitability

reagent type: linker

technique(s)

titration: suitable

color

white to light brown

solubility

H2O: 2.5 mg/mL
DMF: soluble

application(s)

diagnostic assay manufacturing
hematology
histology

storage temp.

2-8°C

Quality Level

300

Looking for similar products? Visit Product Comparison Guide

Related Categories

Analysis Note

May contain dimethylformamide.

Biochem/physiol Actions

4-(N-Maleimidomethyl)cyclohexane-1-carboxylic acid 3-sulfo-N-hydroxysuccinimide ester sodium salt is known to introduce a well-defined number of maleimide groups into the protein which confers them a long shelf-life at low temperatures and can be further labeled with Fluorine-18[18F].

General description

4-(N-Maleimidomethyl)cyclohexane-1-carboxylic acid 3-sulfo-N-hydroxysuccinimide ester sodium salt (sulfoSMCC) is a heterobifunctional protein/peptide cross-linker and a suitable cross-coupling reagent.

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
WXBF3455V
WXBF3025V
WXBF4082V
WXBF0912V
WXBF2308V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Glenn A O Cremers et al.
Bioconjugate chemistry, 30(9), 2384-2392 (2019-08-24)
The combination of the specificity of antibodies and the programmability of DNA nanotechnology has provided the scientific community with a powerful tool to label and unambiguously distinguish a large number of subcellular targets using fluorescence-based read-out methods. Whereas primary antibodies
Xiajun Hu et al.
Scientific reports, 7(1), 12580-12580 (2017-10-05)
We developed a virus-like particle (VLP)-based therapeutic vaccine against angiotensin II receptor type 1, ATR-AP205-001, which could significantly reduce the blood pressure and protect target organs of hypertensive animals. In this study, we focused on the immunological effect and safety
Silica-coated CdTe quantum dots functionalized with thiols for bioconjugation to IgG proteins.
Wolcott A, et. al.
The Journal of Physical Chemistry B, 110, 5779-5779 (2006)
Ivana Giangrieco et al.
Molecular immunology, 112, 347-357 (2019-06-30)
Peach and apricot can cause allergic reactions with symptoms ranging from mild to very severe, including anaphylaxis. Sometimes subjects allergic to fruits of the Prunus genus have been reported to be also allergic to rubber latex products. The objective of
Renshaw S
Immunohistochemistry and Immunocytochemistry: Essential Methods (2017)
View All Related Papers

Our team of scientists has experience in all areas of research including Life Science, Material Science, Chemical Synthesis, Chromatography, Analytical and many others.

Contact Technical Service
