248576

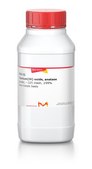

Titanium dioxide, anatase

powder, −325 mesh, ≥99% trace metals basis

Synonym(s):

Titania, Titanium(IV) oxide, anatase, Titanium dioxide

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Linear Formula:
TiO2
CAS Number:
1317-70-0
Molecular Weight:
79.87
NACRES:
NA.23
PubChem Substance ID:
24854937
UNSPSC Code:
12352303
EC Number:
215-280-1
MDL number:
MFCD00011269

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Titanium(IV) oxide, anatase, powder, −325 mesh, ≥99% trace metals basis

form

powder

InChI key

GWEVSGVZZGPLCZ-UHFFFAOYSA-N

InChI

1S/2O.Ti

SMILES string

O=[Ti]=O

description

contains ∼5% rutile

assay

≥99% trace metals basis

particle size

−325 mesh

average diameter

45 μm

mp

1825 °C (lit.)

density

3.9 g/mL at 25 °C (lit.)

Quality Level

200

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

Phase-pure anatase is employed in the solid state synthesis of the mixed oxide NaTiO2 which has been considered as a possible antiferromagnetic material.

General description

Anatase titanium(IV) oxide, also known as titanium dioxide or titania, is a white crystalline powder that is widely used in a variety of applications. Anatase is one of the three naturally occurring crystalline phases of titanium dioxide, the other two being rutile and brookite. Among these three phases, anatase is the most reactive and tends to have the highest surface area, which makes it useful in applications where high reactivity and surface area are desirable.

Storage Class

13 - Non Combustible Solids

wgk

nwg

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCZ2717
MKCX7418
MKCR2444
MKCV7399
MKCW9882

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

William C Vogt et al.
Journal of biomedical optics, 22(9), 1-14 (2017-09-14)
As photoacoustic imaging (PAI) technologies advance and applications arise, there is increasing need for standardized approaches to provide objective, quantitative performance assessment at various stages of the product development and clinical translation process. We have developed a set of performance
Maura Dantuma et al.
Journal of biomedical optics, 27(7) (2021-12-11)
During the development and early testing phases of new photoacoustic (PA) breast imaging systems, several choices need to be made in aspects of system design and measurement sequences. Decision-making can be complex for state-of-the-art systems such as 3D hybrid photoacoustic-ultrasound
Maura Dantuma et al.
Biomedical optics express, 10(11), 5921-5939 (2019-12-05)
Imaging parameters of photoacoustic breast imaging systems such as the spatial resolution and imaging depth are often characterized with phantoms. These objects usually contain simple structures in homogeneous media such as absorbing wires or spherical objects in scattering gels. While
Alberto J Ruiz et al.
Journal of biomedical optics, 25(5), 1-15 (2020-05-23)
Expanded use of fluorescence-guided surgery with devices approved for use with indocyanine green (ICG) has led to a range of commercial systems available. There is a compelling need to be able to independently characterize system performance and allow for cross-system
Clarke, S.J. et al.
Chemistry of Materials, 10, 372-372 (1998)
