Merck

776289

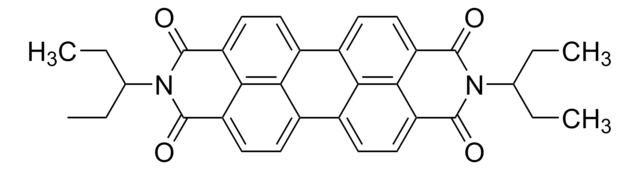

N,N′-Bis(3-pentyl)perylene-3,4,9,10-bis(dicarboximide)

98% (HPLC)

Synonym(s):

2,9-Di(pent-3-yl)-anthra[2,1,9-def,6,5,10-d′e′f′]diisoquinoline-1,3,8,10-tetrone, N,N′-Bis(ethylpropyl)perylene-3,4,9,10-tetracarboxylicdimide, N,N-Bis(ethylpropyl)perylene-3,4,9,10-tetracarboxylicdiimide, Anthra[2,1,9-def:6,5,10-d′e′f′]diisoquinoline-1,3,8,10(2H,9H)-tetrone, 2,9-bis(1-ethylpropyl)-, PBI

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C34H30N2O4
CAS Number:
110590-81-3
Molecular Weight:
530.61
NACRES:
NA.23
PubChem Substance ID:
329767828
UNSPSC Code:
12352103
MDL number:
MFCD00799275

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI

1S/C34H30N2O4/c1-5-17(6-2)35-31(37)23-13-9-19-21-11-15-25-30-26(34(40)36(33(25)39)18(7-3)8-4)16-12-22(28(21)30)20-10-14-24(32(35)38)29(23)27(19)20/h9-18H,5-8H2,1-4H3

SMILES string

CCC(CC)N1C(=O)c2ccc3c4ccc5C(=O)N(C(CC)CC)C(=O)c6ccc(c7ccc(C1=O)c2c37)c4c56

InChI key

AIPBSZJAQGGCPD-UHFFFAOYSA-N

assay

98% (HPLC)

form

powder

mp

>450 °C

λmax

524, 488, 457 nm in dichloromethane

Quality Level

100

Related Categories

General description

N,N′-Bis(3-pentyl)perylene-3,4,9,10-bis(dicarboximide) (EP-PDI) is a perylenediimide derivative that has a planar backbone and π-conjugation. It is a thermally stable polymer with luminescence and photochemical properties. It acts as a pigment and has charge mobility of 1 cm2V-1s-1 which can be used in a variety of energy and chemical sensing based applications.

Application

EP-PDI (acceptor) blended with P3HT (donor) and PCBM (donor) can be used in the fabrication of organic photovoltaic devices and organic solar cells. It forms a mixture with tetrahydrofuran (THF) that shows high intensity fluorescence which can be used as a sensor for the detection of nitroaromatic compounds.
High electron transporting character; Perylenebis(dicarboximide)s (PDIs) can be used as air-stable n-type semiconductor materials for organic fieldeffect transistors (OFETs);
Perylene bisimide dye used for organic photovoltaics (OPVs). A PCE of 1.75% was demonstrated with the solvent vapor annealed films; representing the best among the solar cells based on the single molecule materials.

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
0000469351
0000469351
0000427739
0000427739
MKCF5328

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Attilio Matera et al.
Foods (Basel, Switzerland), 9(4) (2020-04-05)
The quality of ready meals is affected by several factors that may impair stability and nutritional value. In this work, we evaluated the overall quality of four traditional meals (Basilicata region) prepared according to the cook&chill method, packaged in air
Neeraj K Surana et al.
Nature, 552(7684), 244-247 (2017-12-07)
Microbiome-wide association studies have established that numerous diseases are associated with changes in the microbiota. These studies typically generate a long list of commensals implicated as biomarkers of disease, with no clear relevance to disease pathogenesis. If the field is
Using molecular vibrations to probe exciton delocalization in films of perylene diimides with ultrafast mid-IR spectroscopy.
Kennehan ER, et al.
Physical Chemistry Chemical Physics, 19(36), 24829-24839 (2017)
Ye Tian et al.
The Journal of experimental medicine, 214(11), 3347-3360 (2017-09-22)
T lymphocytes are key cellular components of the adaptive immune system and play a central role in cell-mediated immunity in vertebrates. Despite their heterogeneities, it is believed that all different types of T lymphocytes are generated exclusively via the differentiation
The effects of donor: acceptor intermolecular mixing and acceptor crystallization on the composition ratio of blended, spin coated organic thin films.
Weintraub MT, et al.
Journal of Material Chemistry C, 4(33), 7756-7765 (2016)
