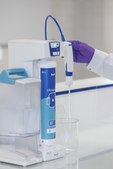

Milli-Q® SQ 200 Purification System Kit (Made In China)
Ultrapure (Type 1) water dispensing module; Includes one 3.5 L Milli-Q® SQ Switch Tank.
About This Item
AC/DC input
100 V / 240 V, 50—60 Hz
greener alternative product characteristics
Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
sustainability
Greener Alternative Product
parameter
≤1.6 L/min distribution flow rate (Ultrapure water from Handset Dispenser), 10 L/day max. usage, 12 kg operating weight (6.5 lb) (production station with SQ Switch 3.5 L tank), 8 kg operating weight (17.6 lb)
resistivity
18.2 MΩ-cm, 25 degrees, 18.2 MΩ-cm
system H
50.3 cm (19.8 in.) , 62.8 cm (24.8 in.) , with Handset Dispenser tubing
system W
26.7 cm (10.5 in.) , 38.4 cm (15.1 in.) , including Handset Dispenser
system depth
22 cm (8.7 in.)
impurities
Microbes: < 10 cfu/L (typically < 1 cfu/L) with SQPAK™ Final or Bio Final filters, Particulates: < 1 unit/mL (particulates > 0.22 µm with SQPAK™ Final or Bio Final filters, Pyrogens: < 0.001 EU/mL with SQPAK™ Final or Bio Final filters
total organic carbon (TOC) residue
≤5 ppb (Product Water)
input
feed water nature potable tap water ( Lab feed water connection must be a 1/2" Male thread NPT/BSP/GAZ)
output
product water quality: type 1 water (18.2 MΩ·cm)
conductivity
0.055 μS/cm
greener alternative category
General description
The Milli-Q® SQ 200 water purification system kit delivers ultrapure (Type 1) water from the SQ Switch 3.5 L tank filled with pure reverse osmosis (RO) water. A flexible handset dispenser delivers the ultrapure water. This dispensing module must be associated with a Milli-Q® SQ 2Series pure RO production station to refill its mobile SQ Switch tank.
The Milli-Q® SQ 200 dispensing module allows to set or scale up 5 of the 6 preset configurations available for the Milli-Q® SQ 2Series family: Milli-Q® SQ 240, Milli-Q® SQ 240L, Milli-Q® SQ 240XL, Milli-Q® SQ 240C and [TM=Milli-Q"] SQ 240CV. These configurations grant users full autonomy and are adaptable to lab requirements and evolutions.
We are committed to bringing you Greener Alternative Products, which belongs to one of the four categories of greener alternatives . This product is a Design for Sustainability (DfS) developed product. Click here to view its DfS scorecard.
Features and Benefits
- Simple, manual handset dispenser allows any new or untrained user to deliver ultrapure water at variable flow rates, from up to 1.6 L/min to drop by drop
- Reliable 18.2 MΩ.cm resistivity ultrapure (Type 1) water quality is indicated at a glance by a colored LED
- TOC is reduced by an integrated photo-oxidation UV lamp
- This autonomous dispensing unit provides fresh ultrapure water anywhere with an electrical outlet thanks to the mobile SQ Switch tank
- Fast (as little as 6 min) refilling of the mobile SQ Switch tank with freshly produced pure RO water thanks to the high-flow RO cartridge (up to 42 L/h) of the pure water production station
- Compact setup and self-guided installation manual and videos let you plug the system wherever is convenient for your lab activity and move it later if needed
- Individual Twist & Lock cartridge replacement simplifies maintenance and limits running cost
- Compact size plus water and energy savings support lab sustainability efforts
Other Notes
This catalog number includes:
- The ultrapure dispensing module from a 3.5 L tank
- One Milli-Q® SQ Switch 3.5 L tank
This catalog number does not include:
- Milli-Q® cartridges or final filters
- SQ Gravity valve
- The mandatory pure RO production station to refill SQ Switch 3.5 L tank: Milli-Q® SR 240 / SR 240L / SR 240XL Purification System
- Power cord adapted to the local electrical network
