Merck

791245

N749 Black Dye

Synonym(s):

Greatcell Solar®, Black dye, Ruthenium 620, Tris(N,N,N-tributyl-1-butanaminium)[[2,2′′6′,2′′-terpyridine]-4,4′,4′′-tricarboxylato(3-)-N1,N1′,N1′′]tris(thiocyanato-N)hydrogen ruthenate(4-)

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C69H116N9O6RuS3
Molecular Weight:
1364.98
NACRES:
NA.23
PubChem Substance ID:
329768264
UNSPSC Code:
12352103
MDL number:
MFCD28016340

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI

1S/C18H11N3O6.3C16H36N.3CNS.Ru/c22-16(23)9-1-3-19-12(5-9)14-7-11(18(26)27)8-15(21-14)13-6-10(17(24)25)2-4-20-13;3*1-5-9-13-17(14-10-6-2,15-11-7-3)16-12-8-4;3*2-1-3;/h1-8H,(H,22,23)(H,24,25)(H,26,27);3*5-16H2,1-4H3;;;;/q;3*+1;3*-1;+3/p-3

SMILES string

CCCC[N+](CCCC)(CCCC)CCCC.[O-]C(C1=CC(C2=NC=CC(C([O-])=O)=C2)=NC(C3=CC(C([O-])=O)=CC=N3)=C1)=O.S=C=N[Ru](N=C=S)N=C=S.CCCC[N+](CCCC)(CCCC)CCCC.CCCC[N+](CCCC)(CCCC)CCCC

InChI key

YOIDEEDNCKVVPH-UHFFFAOYSA-K

assay

85% (HPLC)

form

powder

color

dark green

λmax

615, 415, 341, 329 nm at 0.02 mM in ethanol (lit.)

Quality Level

100

Related Categories

Application

N749 Black Dye is designed for the widest range spectral sensitisation of wide band-gap oxide semiconductors; like titanium dioxide up to wavelengths beyond 800nm.
Recommended application in 0.2-0.3mM solution with ethanol or acetonitrile/tert-butanol (1:1; vol:vol).
Reduced graphene oxide (rGO) can be surface modified by using N749 to enhance the photocatalytic characteristics of hydrogen evolution system. It may also be used as a high efficiency dye for niobium pentoxide (Nb2O5) photoanodes which can be used for the fabrication of titanium oxide (TiO2) coated dye sensitized solar cells (DSSCs).

General description

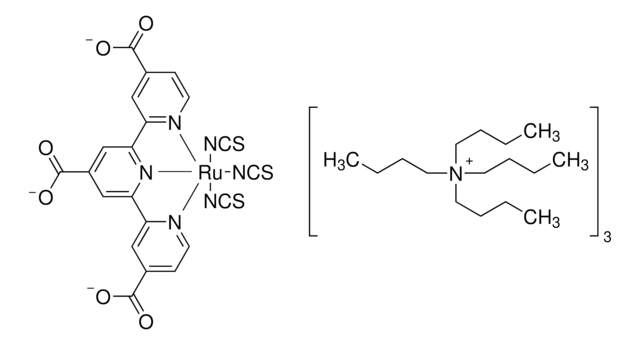

N749 Black Dye (N749) has ruthenium at the center that forms a co-ordinate bond with the monoprotonated tricarboxyterpyridine and three thiocyanates. It can be used as a sensitizer that functionalizes the semi-conducting materials that exhibit an absorption peak in the near infrared region.

Legal Information

Greatcell Solar is a registered trademark of Greatcell Solar

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCH8922
MKBV1736V
MKBR1472V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Panchromatic engineering for dye-sensitized solar cells
Yum J, et al.
Energy & Environmental Science, 4(3), 842-857 (2011)
Minwoo Ahn et al.
Lasers in surgery and medicine, 46(9), 703-711 (2014-08-29)
Laser light has been widely used as a surgical tool to treat benign prostate hyperplasia (BPH) over 20 years. Recently, application of high laser power up to 200 W was often reported to swiftly remove a large amount of prostatic tissue.
Carolin Müller et al.
The journal of physical chemistry. A, 124(33), 6607-6616 (2020-07-24)
The impact of the electronic structure of a series of 4H-imidazolate ligands in neutral, heteroleptic Cu(I) complexes is investigated. Remarkable broad and strong ligand-dependent absorption in the visible range of the electromagnetic spectrum renders the studied complexes promising photosensitizers for
Ridade Sayin et al.
International journal of pharmaceutics, 496(1), 24-32 (2015-09-20)
As twin screw granulation (TSG) provides one with many screw element options, characterization of each screw element is crucial in optimizing the screw configuration in order to obtain desired granule attributes. In this study, the performance of two different screw
Masanori Miyashita et al.
Journal of the American Chemical Society, 130(52), 17874-17881 (2008-12-11)
Electron diffusion coefficient, lifetime, and density in the TiO(2) electrode of dye-sensitized TiO(2) solar cells (DSCs) employing I(-)/I(3)(-) redox couples were measured with eight different metal-free organic dyes and three Ru complex dyes. At matched electron density, all DSCs using
