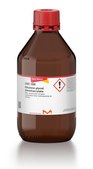

Ethylene glycol dimethacrylate

98%, cross-linking reagent polymerization reactions, methacrylate, 90-110 ppm monomethyl ether hydroquinone as inhibitor

Sinónimos:

Polyethylene glycol, 1,2-Ethanediol dimethacrylate, Ethylene dimethacrylate

Iniciar sesión para ver los precios por organización y contrato.

Seleccione un Tamaño

Acerca de este artículo

Fórmula lineal:
CH2=C(CH3)COOCH2CH2OCOC(CH3)=CH2
Número CAS:
97-90-5
Peso molecular:
198.22
NACRES:
NA.23
PubChem Substance ID:
24860340
UNSPSC Code:
12162002
EC Number:
202-617-2
MDL number:
MFCD00008590
Beilstein/REAXYS Number:
1776663

Documentos clave

Ver Toda la documentación
Servicio técnico
¿Necesita ayuda? Nuestro equipo de científicos experimentados está aquí para ayudarle.
Permítanos ayudarle
Servicio técnico
¿Necesita ayuda? Nuestro equipo de científicos experimentados está aquí para ayudarle.
Permítanos ayudarle

Nombre del producto

Ethylene glycol dimethacrylate, 98%, contains 90-110 ppm monomethyl ether hydroquinone as inhibitor

InChI key

STVZJERGLQHEKB-UHFFFAOYSA-N

InChI

1S/C10H14O4/c1-7(2)9(11)13-5-6-14-10(12)8(3)4/h1,3,5-6H2,2,4H3

SMILES string

CC(=C)C(=O)OCCOC(=O)C(C)=C

vapor density

>1 (vs air)

vapor pressure

<0.1 mmHg ( 21.1 °C)

assay

98%

form

liquid

contains

90-110 ppm monomethyl ether hydroquinone as inhibitor

reaction suitability

reagent type: cross-linking reagent
reaction type: Polymerization Reactions

refractive index

n20/D 1.454 (lit.)

bp

98-100 °C/5 mmHg (lit.)

density

1.051 g/mL at 25 °C (lit.)

Ω-end

methacrylate

α-end

methacrylate

polymer architecture

shape: linear
functionality: homobifunctional

storage temp.

2-8°C

Quality Level

300

¿Está buscando productos similares? Visita Guía de comparación de productos

Categorías relacionadas

Application

Ethylene glycol dimethacrylate can be used as a cross-linker in thepreparation of:

  • A terpolymer system, poly(acrylonitrile-co-Ethyleneglycol dimethacrylate-co-vinylbenzyl chloride), which is applicable as a sorbentin pharmaceuticals adsorption.
  • PVA (polyvinyl alcohol) based hydrogel by free-radicalcopolymerization. These PVA polymer networks can be used as drug deliverysystems.
It can also be used asa monomer in the preparation of swellable and non-swellable poly(ethyleneglycol dimethacrylate/acrylic acid) copolymer microspheres through suspensionpolymerization.

General description

Ethylene glycol dimethylacrylate (EGDMA) is a diester formed by condensation of two equivalents of methacrylic acid and one equivalent of ethylene glycol.

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H317,H335

Hazard Classifications

Skin Sens. 1 - STOT SE 3

target_organs

Respiratory system

Clase de almacenamiento

10 - Combustible liquids

wgk

WGK 1

flash_point_f

219.2 °F - Pensky-Martens closed cup

flash_point_c

104 °C - Pensky-Martens closed cup

ppe

Eyeshields, Faceshields, Gloves, type ABEK (EN14387) respirator filter

Elija entre una de las versiones más recientes:

Certificados de análisis (COA)

Lot/Batch Number
WXBF8000V
MKCX9644
WXBF6047V
WXBF5411V
MKCX3858

¿No ve la versión correcta?

Si necesita una versión concreta, puede buscar un certificado específico por el número de lote.

Busque por un COA

¿Ya tiene este producto?

Encuentre la documentación para los productos que ha comprado recientemente en la Biblioteca de documentos.

Visite la Librería de documentos

Kouroush Salimi et al.
Journal of chromatography. A, 1496, 9-19 (2017-03-30)
A seeded polymerization protocol was developed for the synthesis of monodisperse-porous poly(vinylphosphonic acid-co-ethylene dimethacrylate), [poly(VPA-co-EDMA)] microspheres with superior porous properties. The protocol allowed the direct synthesis of phosphonic acid functionalized porous microspheres with the mean size of ∼4μm and the
Yuan Qi et al.
ACS applied materials & interfaces, 11(32), 28690-28698 (2019-07-20)
Compared with conventional glass slides and two-dimensional (2D) planar microarrays, polymer-based support materials and three-dimensional (3D) surface structures have attracted increasing attention in the field of biochips because of their good processability in microfabrication and low cost in mass production
Andreia F R Pimenta et al.
PloS one, 11(12), e0167728-e0167728 (2016-12-10)
The study of ocular drug delivery systems has been one of the most covered topics in drug delivery research. One potential drug carrier solution is the use of materials that are already commercially available in ophthalmic lenses for the correction
Robert H Utama et al.
Chemical communications (Cambridge, England), 48(90), 11103-11105 (2012-10-09)
Hollow polymeric nanoparticles with a hydrophilic liquid core have been synthesized in a one-pot approach via a novel inverse miniemulsion periphery RAFT polymerization process. Successful encapsulation and release of a model protein is reported as a potential application.
Zhen Wang et al.
Electrophoresis, 33(21), 3151-3158 (2012-09-06)
A microfluidic device that performs "in space" sample fractionation, collection, and preconcentration for proteomics is described. Effluents from a 2.75 mm long fractionation channel, focused via sheath flow, were sequentially delivered into an array of 36-collection channels containing monolithic polymer
