Merck

398802

Tetra(ethylene glycol) diacrylate

technical grade, cross-linking reagent polymerization reactions, acrylate, 100-150 ppm HQ as inhibitor, 150-200 ppm MEHQ as inhibitor

Sinónimos:

TTEGDA

Iniciar sesión para ver los precios por organización y contrato.

Seleccione un Tamaño

Cambiar Vistas

Acerca de este artículo

Fórmula lineal:

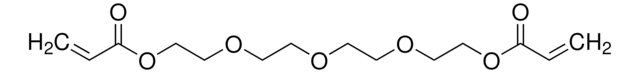

(H2C=CHCO2CH2CH2OCH2CH2)2O
Número CAS:
Peso molecular:
302.32
NACRES:
NA.23
PubChem Substance ID:
UNSPSC Code:
12162002
EC Number:
241-789-3
MDL number:
Servicio técnico
¿Necesita ayuda? Nuestro equipo de científicos experimentados está aquí para ayudarle.
Permítanos ayudarle


Nombre del producto

Tetra(ethylene glycol) diacrylate, technical grade, contains 100-150 ppm HQ as inhibitor, 150-200 ppm MEHQ as inhibitor

grade

technical grade

form

liquid

contains

100-150 ppm HQ as inhibitor, 150-200 ppm MEHQ as inhibitor

reaction suitability

reagent type: cross-linking reagent
reaction type: Polymerization Reactions

refractive index

n20/D 1.465 (lit.)

density

1.11 g/mL at 25 °C (lit.)

Ω-end

acrylate

α-end

acrylate

polymer architecture

shape: linear
functionality: homobifunctional

SMILES string

C=CC(=O)OCCOCCOCCOCCOC(=O)C=C

InChI

1S/C14H22O7/c1-3-13(15)20-11-9-18-7-5-17-6-8-19-10-12-21-14(16)4-2/h3-4H,1-2,5-12H2

InChI key

HCLJOFJIQIJXHS-UHFFFAOYSA-N

General description

Tetra(ethylene glycol) diacrylate is a long-chain hydrophilic, crosslinking monomer widely used in the preparation of gel polymer electrolytes for Li-ion polymer batteries, acrylic polymers, and coating materials.


pictograms

Exclamation mark

signalword

Warning

hcodes

Hazard Classifications

Acute Tox. 4 Oral - Skin Sens. 1

Clase de almacenamiento

10 - Combustible liquids

wgk

WGK 2

flash_point_f

235.4 °F - closed cup

flash_point_c

113 °C - closed cup

ppe

Faceshields, Gloves, Goggles, type ABEK (EN14387) respirator filter



Elija entre una de las versiones más recientes:

Certificados de análisis (COA)

Lot/Batch Number

¿No ve la versión correcta?

Si necesita una versión concreta, puede buscar un certificado específico por el número de lote.

¿Ya tiene este producto?

Encuentre la documentación para los productos que ha comprado recientemente en la Biblioteca de documentos.

Visite la Librería de documentos



Synthesis of electron beam cured free-standing ion-gel membranes for organic electronics applications
Marco Mennillo, et al.
Journal of Polymer Science Part A: Polymer Chemistry, 54, 2352-2360 (2016)
Electrochemical properties of poly(tetra ethylene glycol diacrylate)-based gel electrolytes for lithium-ion polymer batteries
Hyun-Soo Kim, et al.
Journal of Power Sources, 119-121, 482-486 (2003)
J R Nethercott et al.
Journal of occupational medicine. : official publication of the Industrial Medical Association, 26(7), 513-516 (1984-07-01)
A woman who worked as a materials handler in a plant manufacturing acrylated chemicals developed allergic contact allergy to tetraethylene glycol diacrylate (TTEGDA). Four co-workers experienced skin irritation 12 to 36 hours after skin contact with TTEGDA but had no
