757136
Lithium bis(oxalato)borate
Sinónimos:
LiBOB, Lithium bis(ethanedioato)borate, Lithium bis(oxalate)borate
Iniciar sesión para ver los precios por organización y contrato.
Seleccione un Tamaño
Cambiar Vistas
Acerca de este artículo
Fórmula lineal:
LiB(C2O4)2
Número CAS:
Peso molecular:
193.79
NACRES:
NA.23
PubChem Substance ID:
MDL number:
UNSPSC Code:
12352103
Servicio técnico
¿Necesita ayuda? Nuestro equipo de científicos experimentados está aquí para ayudarle.
Permítanos ayudarleform
powder or crystals
Quality Level
greener alternative product characteristics
Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.
sustainability
Greener Alternative Product
mp
>300 °C (lit.)
application(s)
battery manufacturing
greener alternative category
SMILES string

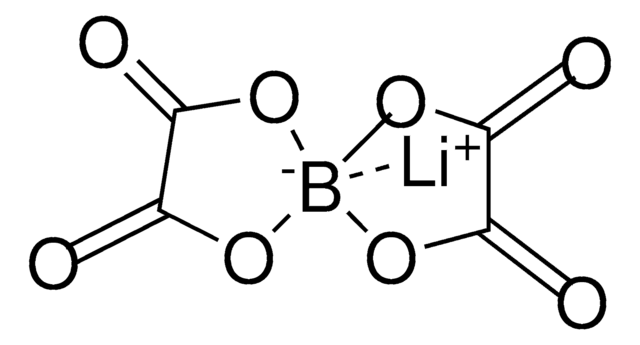

[Li+].O=C1O[B-]2(OC1=O)OC(=O)C(=O)O2
InChI
1S/C4BO8.Li/c6-1-2(7)11-5(10-1)12-3(8)4(9)13-5;/q-1;+1
InChI key
NVQAYVUCVASGDK-UHFFFAOYSA-N
General description
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product has been enhanced for energy efficiency. Find details here.
Lithium bis(oxalato)borate (LiBOB) is a class of electrolytic materials that can be used in the fabrication of lithium-ion batteries. Lithium-ion batteries consist of anode, cathode, and electrolyte with a charge-discharge cycle. These materials enable the formation of greener and sustainable batteries for electrical energy storage.
Application
LiBOB is a novel boron based Li salt electrolyte material for Li ion batteries. It is environmentally friendly with good film forming property and high thermal stability and is compatible with a variety of anodes and metal oxide cathode.
LiBOB is a thermally stable electrolyte that can be used to protect graphite-based anode materials in lithium-ion batteries. It shows good electrochemical performance with a discharge capacity retention of ~ 83%.
signalword
Danger
hcodes
Hazard Classifications
Acute Tox. 4 Oral - Eye Dam. 1 - Skin Sens. 1A
Clase de almacenamiento
13 - Non Combustible Solids
wgk
WGK 1
Elija entre una de las versiones más recientes:
¿Ya tiene este producto?
Encuentre la documentación para los productos que ha comprado recientemente en la Biblioteca de documentos.
Snehashis Choudhury et al.
Nature communications, 10(1), 4398-4398 (2019-09-29)
Electrochemical cells based on alkali metal anodes are receiving intensive scientific interest as potentially transformative technology platforms for electrical energy storage. Chemical, morphological, mechanical and hydrodynamic instabilities at the metal anode produce uneven metal electrodeposition and poor anode reversibility, which, are among the many
Surface layer formed on silicon thin-film electrode in lithium bis (oxalato) borate-based electrolyte
Choi N, et al.
Journal of Power Sources, 172(1), 404-409 (2007)
Jonas Hedman et al.
ChemSusChem, 13(21), 5731-5739 (2020-08-22)
The interaction between a fibre optic evanescent wave sensor and the positive electrode material, lithium iron phosphate, in a battery cell is presented. The optical-electrochemical combination was investigated in a reflection-based and a transmission-based configuration, both leading to comparable results.
