MD0SP027H1

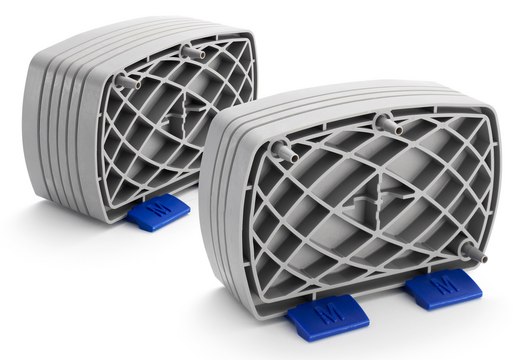

Filtro de profundidad Millistak+® HC Pro Pod

D0SP, filtration area 0.027 m², Lab Scale

Sinónimos:

Millistak+ HC Pro Pod Depth Filter, D0SP media series, 0.027 m 2 surface area, 1/4 in. Hose Barb connection

Iniciar sesión para ver los precios por organización y contrato.

Seleccione un Tamaño

Cambiar Vistas

Acerca de este artículo

UNSPSC Code:
23151806
eCl@ss:
32031690
Servicio técnico
¿Necesita ayuda? Nuestro equipo de científicos experimentados está aquí para ayudarle.
Permítanos ayudarle

Nombre del producto

Filtro de profundidad Millistak+® HC Pro Pod, D0SP, filtration area 0.027 m2, hydrophilic

Quality Level

400

material

acrylic , polypropylene , silica filter aid

description

Primary clarification directly out of the bioreactor

feature

hydrophilic

manufacturer/tradename

Millistak+®

parameter

2.1 bar max. differential pressure (30 psid) at 25 °C (Forward), 30 psid max. differential pressure (2.1 bar) at 37 °C (Reverse), 30 psid max. differential pressure (2.1 bar) at 4 °C (Forward), 31 psid max. inlet pressure (2.1 bar) at 25 °C

H

140 mm , 5.5 in. (14 cm)

L

8.6 in. (22 cm)

filtration area

0.027 m2

impurities

<0.25 EU/mL bacterial endotoxins (LAL test, Aqueous extraction)

input

sample type liquid

conductivity

3.64-10.5 μS/cm at 25 °C (product water)

filter grade

D0SP

General description

The Millistak+® HC Pro Pod Depth Filter (high capacity synthetic media) is a synthetic depth filter providing a cleaner and more consistent depth filtration media over current diatomaceous earth (DE) and cellulose (CE) based filter offerings. This unit, featured in a Lab Scale Pod format with a D0SP media grade, supports primary and secondary clarification as well as downstream filtration applications.

Application

Primary clarification directly out of the bioreactor

Features and Benefits

Filter Grade: D0SP
Synthetic materials of construction

  • Reduce TOC extractables and pre-use flush volume requirements by 50%
  • No beta glucans to interfere with limulous amoebocyte lysate (LAL) testing for bacterial endotoxins

Lot to lot consistency for successful development and implementation of robust clarification processes

Depth filter media formulation & design
  • Provide as much as two times the filtration capacity with equivalent filter retention properties over commercial DE-based benchmarks
  • Improved HCP impurity clearance


Disposable Pod device
  • Flexible, modular format offers scalability from 5 to 12,000 liters or more
  • Robust device format; easy to use and set up

Trace metals were measured post pure water flush of 50 L/m2 of surface area and 24-hour static soak in pure water. Values based on average of metals extractibles data from three separate uPod device lots. The analysis was made by ICP-MS. The devices were not autoclaved.

Preparation Note

Sterilization Method
1 autoclave cycle of 60 min @ 123 ºC, filtration performance may be impacted. Recommended for post use contamination only.

Analysis Note

Product Water Conductivity at 25°C: post autoclave (1 cycle of 60 minutes at 123 °C) and pure water flush of 10 liter per ft2 (100 L/m2) of media surface area

Legal Information

MILLISTAK+ is a registered trademark of Merck KGaA, Darmstadt, Germany
