Merck

D8064

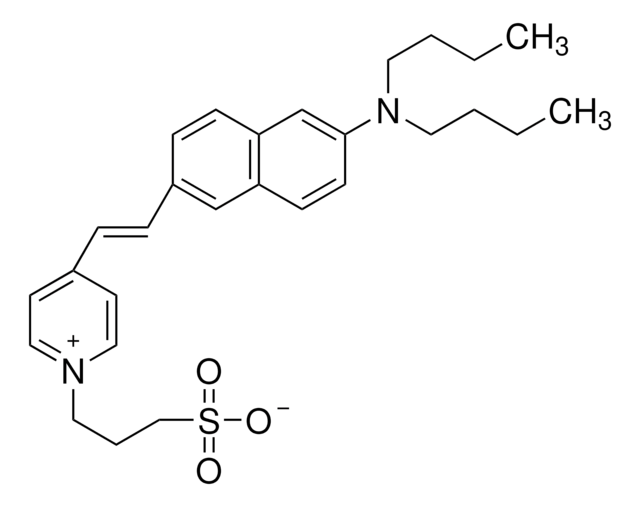

4-(2-(6-(Dibutylamino)-2-naphthalenyl)ethenyl)-1-(3-sulfopropyl)pyridinium hydroxide inner salt

≥95% purity (HPLC), solid

Sinónimos:

Di-4-ANEPPS

Iniciar sesión para ver los precios por organización y contrato.

Seleccione un Tamaño

Todas las fotos(1)

About This Item

Fórmula empírica (notación de Hill):
C28H36N2O3S
Número CAS:
90134-00-2
Peso molecular:
480.66
UNSPSC Code:
12171500
PubChem Substance ID:
329798855
NACRES:
NA.47
MDL number:
MFCD03453609

Nombre del producto

4-(2-(6-(Dibutylamino)-2-naphthalenyl)ethenyl)-1-(3-sulfopropyl)pyridinium hydroxide inner salt, ≥95% (HPLC), solid

SMILES string

CCCCN(CCCC)c1ccc2cc(\C=C\c3cc[n+](CCCS([O-])(=O)=O)cc3)ccc2c1

InChI key

HAPJROQJVSPKCJ-UHFFFAOYSA-N

InChI

1S/C28H36N2O3S/c1-3-5-17-30(18-6-4-2)28-13-12-26-22-25(10-11-27(26)23-28)9-8-24-14-19-29(20-15-24)16-7-21-34(31,32)33/h8-15,19-20,22-23H,3-7,16-18,21H2,1-2H3

assay

≥95% (HPLC)

form

solid

mol wt

480.66

technique(s)

titration: suitable

color

orange to dark red

solubility

DMF: soluble
DMSO: soluble
ethanol: soluble

ε (extinction coefficient)

≥38000 at 493-499 nm in methanol

application(s)

diagnostic assay manufacturing
hematology
histology

storage temp.

2-8°C

Quality Level

100

Categorías relacionadas

Application

4-(2-(6-(Dibutylamino)-2-naphthalenyl)ethenyl)-1-(3-sulfopropyl)pyridinium hydroxide inner salt has been used as a voltage sensitive dye in cardiac cells.

Biochem/physiol Actions

Membrane potential dye that responds to changes in membrane potential monitored by fluorescence excitation changes at 440 and 505 nm; correlated to changes in membrane potential of the cell.

Clase de almacenamiento

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Elija entre una de las versiones más recientes:

Certificados de análisis (COA)

Lot/Batch Number
MKCT0129
MKCT0643
MKCS0172
MKCS1693
MKCS1259

¿No ve la versión correcta?

Si necesita una versión concreta, puede buscar un certificado específico por el número de lote.

Busque por un COA

¿Ya tiene este producto?

Encuentre la documentación para los productos que ha comprado recientemente en la Biblioteca de documentos.

Visite la Librería de documentos

Thomas T Luyben et al.
Frontiers in neural circuits, 14, 24-24 (2020-06-26)
cAMP is a positive regulator tightly involved in certain types of synaptic plasticity and related memory functions. However, its spatiotemporal roles at the synaptic and neural circuit levels remain elusive. Using a combination of a cAMP optogenetics approach and voltage-sensitive
James E Reeve et al.
Biophysical journal, 103(5), 907-917 (2012-09-27)
Numerous dyes are available or under development for probing the structural and functional properties of biological membranes. Exogenous chromophores adopt a range of orientations when bound to membranes, which have a drastic effect on their biophysical behavior. Here, we present
Katharine M Dibb et al.
Circulation. Heart failure, 2(5), 482-489 (2009-10-08)
In ventricular myocytes, the majority of structures that couple excitation to the systolic rise of Ca(2+) are located at the transverse tubular (t-tubule) membrane. In the failing ventricle, disorganization of t-tubules disrupts excitation contraction coupling. The t-tubule membrane is virtually
Yoko Tominaga et al.
Frontiers in cellular neuroscience, 12, 389-389 (2018-11-09)
Activity-dependent changes in the input-output (I-O) relationship of a neural circuit are central in the learning and memory function of the brain. To understand circuit-wide adjustments, optical imaging techniques to probe the membrane potential at every component of neurons, such
Zachary Laksman et al.
Scientific reports, 7(1), 5268-5268 (2017-07-15)
Since current experimental models of Atrial Fibrillation (AF) have significant limitations, we used human embryonic stem cells (hESCs) to generate an atrial-specific tissue model of AF for pharmacologic testing. We generated atrial-like cardiomyocytes (CMs) from hESCs which preferentially expressed atrial-specific
