Merck

570250

STO-609

A cell-permeable and reversible naphthoyl fused benzimidazole compound that acts as a highly selective, potent, ATP-competitive inhibitor of Ca2+/CaM-KK.

Synonym(s):

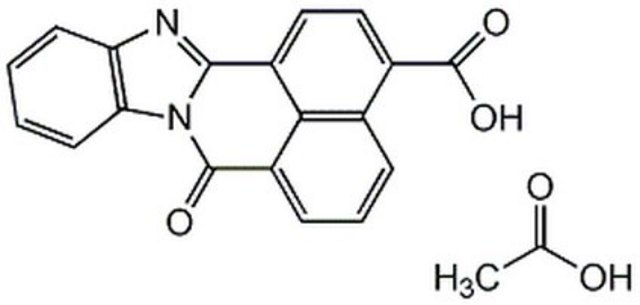

STO-609, 7H-Benz[de]benzimidazo[2,1-a]isoquinoline-7-one-3-carboxylic Acid, Acetate, 7-Oxo-7H-benzimidazo[2,1-a]benz[de]isoquinoline-3-carboxylic Acid, Acetate

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C19H10N2O3 · xC2H4O2
CAS Number:
52029-86-4
Molecular Weight:
314.29 (free base basis)
UNSPSC Code:
12352200
Assay:
≥95% (HPLC)
Form:
solid
Quality level:
100
Storage condition:
OK to freeze, desiccated (hygroscopic), protect from light

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI key

MYKOWOGZBMOVBJ-UHFFFAOYSA-N

InChI

1S/C19H10N2O3/c22-18-13-5-3-4-10-11(19(23)24)8-9-12(16(10)13)17-20-14-6-1-2-7-15(14)21(17)18/h1-9H,(H,23,24)

assay

≥95% (HPLC)

form

solid

manufacturer/tradename

Calbiochem®

storage condition

OK to freeze, desiccated (hygroscopic), protect from light

color

yellow

solubility

DMSO: 10 mg/mL, 0.1 M NaOH: 20 mg/mL

shipped in

ambient

storage temp.

2-8°C

Quality Level

100

General description

A cell-permeable and reversible naphthoyl fused benzimidazole compound that acts as a highly selective, potent, ATP-competitive inhibitor of Ca2+/calmodulin-dependent protein kinase kinase (CaM-KK) [IC50 = 120 ng/ml and 40 ng/ml for CaM-KKα and CaM-KKβ isoforms, respectively]. Binds to the catalytic domain of CaM-KK, and inhibits autophosphorylation. Does not significantly affect the activities of CaM-KII, MLCK (IC50 = ~10 µg/ml), CaM-KI, CaM-KIV, PKA, PKC, and p42 MAP kinase (IC50 >10 µg/ml). Has also been reported to inhibit phosphorylation of AMP-activated protein kinase (AMPK).
A cell-permeable and reversible napthoyl-fused benzimidazole compound that acts as a highly selective, potent, ATP-competitive inhibitor of Ca2+/calmodulin-dependent protein kinase kinase (CaM-KK) (IC50 = 120 ng/ml and 40 ng/ml for CaM-KKα and CaM-KKβ isoforms, respectively). Reported to bind to the catalytic domain of CaM-KK, and inhibit autophosphorylation. Does not significantly affect the activities of CaM-KII, MLCK (IC50 ~10 µg/ml), CaM-KI, CaM-KIV, PKA, PKC and p42 MAP kinase (IC50 >10 µg/ml). Has also been reported to inhibit phosphorylation of AMP-activated protein kinase (AMPK).

Biochem/physiol Actions

Cell permeable: yes
Primary Target
CaM-KKα
Product competes with ATP.
Reversible: yes
Target IC50: 120 ng/ml and 40 ng/ml for CaM-KKα and CaM-KKβ isoforms, respectively

Packaging

Packaged under inert gas

Preparation Note

May require warming to acheive complete solubilization in DMSO.

Other Notes

Levine, Y., et al. 2007. J. Biol. Chem.282, 20351.
Tokumitsu, H., et al. 2003. J. Biol. Chem.278, 10908.
Tokumitsu, H., et al. 2002. J. Biol. Chem.277, 15813.

Legal Information

CALBIOCHEM is a registered trademark of Merck KGaA, Darmstadt, Germany
