901082

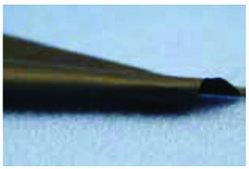

Carbon nanotube sheet
aligned, size × thickness 100 mm × 100 mm × 1-5 μm
別名:
MWCNT, MWNT, Multiwall carbon nanotube
ログインで組織・契約価格をご覧ください。
サイズを選択してください
表示を変更する
この商品について
Quality Segment
assay
>95% (carbon)
resistivity
10-1000 Ω/sq
size × thickness
100 mm × 100 mm × 1-5 μm
diameter
10-40 nm (carbon nanotubes)
SMILES string
[C]
InChI
1S/C
InChI key
OKTJSMMVPCPJKN-UHFFFAOYSA-N
General description
Multi-walled carbon nanotubes are aligned in a direction. The CNTs are just connected with van der Waals forces, and no binder material is used. The sheet shows high anisotropic transport properties, including electrical conductivity and thermal conductivity.

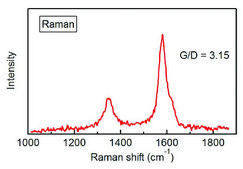

CNT has a multi-walled structure. Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of CNT is ∼3, showing high crystal quality. The high crystallinity is supported by transmission electron microscopy.
CNT has a multi-walled structure. Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of CNT is ∼3, showing high crystal quality. The high crystallinity is supported by transmission electron microscopy.
Preparation Note
Chemical Vapor Deposition (CVD) method.
Still not finding the right product?
Explore all of our products under Carbon nanotube sheet
保管分類
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
