906972
F-M
≥98%
別名:

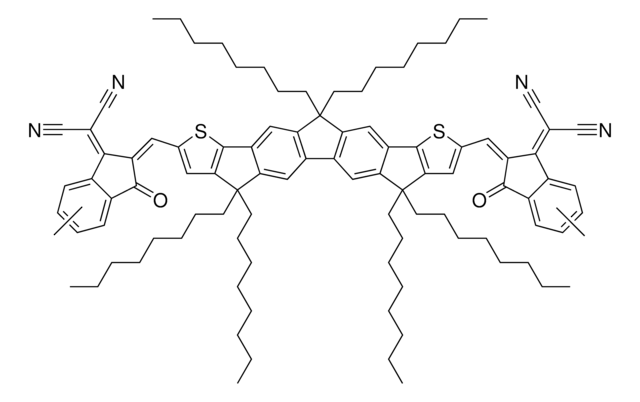

4,4,7,7,12,12-octyl-7,12-dihydro- bis[methylidyne(3-oxo-methyl-1H indene-2,1(3H)-diylidene)]]bis-4H-thieno[2″,3″:1′,2′]indeno[5′,6′:5,6]-s-indaceno[1,2-b]thiophene, FTIC-C8C8M
ログインで組織・契約価格をご覧ください。
サイズを選択してください
表示を変更する
この商品について
実験式（ヒル表記法）:
C99H122N4O2S2
CAS番号:
分子量:
1464.18
MDL number:
UNSPSC Code:
12352101
NACRES:
NA.23
description
Band gap: 1.72 eV, Band gap: Eg = 1.72 eV, Solubility: Soluble in Chloroform, CB and ODCB
assay
≥98%
form
solid
orbital energy
HOMO -5.42 eV , LUMO -3.70 eV
SMILES string
[s]1c2c(cc1\C=C%10/C(=O)c%11c(cccc%11)C/%10=C(C#N)C#N)C(c3c2cc4c(c3)c5c(cc6c(c5)C(c7c6[s]c(c7)\C=C8/C(=O)c9c(cccc9)C/8=C(C#N)C#N)(CCCCCCCC)CCCCCCCC)C4(CCCCCCCC)CCCCCCCC)(CCCCCCCC)CCCCCCCC.CC.CC
InChI key
XPHYXDLZYTYOBX-OMQJLYAYSA-N
General description
Non-fullerene acceptors (NFAs) are currently a major focus of research in the development of bulk-heterojunction organic solar cells (OSCs). In contrast to the widely used fullerene acceptors (FAs), the optical properties and electronic energy levels of NFAs can be designed and readily tuned. NFA-based OSCs can also achieve greater thermal stability and photochemical stability, as well as longer device lifetimes, than their FA-based counterparts.Recent developments have led to a rapid increase in power conversion efficiencies for NFA OSCs, with values now exceeding 15% in a single junction cell, and >17% for a tandem cell, demonstrating the viability of using NFAs to replace FAs in next-generation high-performance OSCs.
Application
F-M is a non-fullerene acceptor that absorbs visible light, when used in a front cell paired with NIR absorbing rear cell, the resulted tandem organic solar cell gave a record energy conversion efficiency of 17.3%.
Tandem Cell Device performance:
ITO/ZnO/PFN-Br/PBDB-T:F-M/M-PEDOT/ZnO/PTB7- Th:O6T-4F:PC71BM/MoO3/Ag
Voc=1.642 V
Jsc=14.35 mA/cm2
FF=73.7%
PCE=17.3%
Tandem Cell Device performance:
ITO/ZnO/PFN-Br/PBDB-T:F-M/M-PEDOT/ZnO/PTB7- Th:O6T-4F:PC71BM/MoO3/Ag
Voc=1.642 V
Jsc=14.35 mA/cm2
FF=73.7%
PCE=17.3%
保管分類
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
適用法令
試験研究用途を考慮した関連法令を主に挙げております。化学物質以外については、一部の情報のみ提供しています。 製品を安全かつ合法的に使用することは、使用者の義務です。最新情報により修正される場合があります。WEBの反映には時間を要することがあるため、適宜SDSをご参照ください。
Deleterious substance
pdsc
906972-100MG:4.548173366982E12
jan
