913758

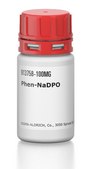

Phen-NaDPO
別名:
3-[6-(diphenylphosphinyl)-2-naphthalenyl]-1,10-Phenanthroline
ログインで組織・契約価格をご覧ください。
サイズを選択してください
表示を変更する
この商品について
実験式（ヒル表記法）:
C34H23N2OP
CAS番号:
分子量:
506.53
UNSPSC Code:
12352103
NACRES:
NA.23
MDL number:
assay
≥98%
Quality Level
form
powder
transition temp
Tg ~116 °C
solubility
soluble (Soluble in polar and weakly polar solvents such as isopropanol, toluene and xylenes)
semiconductor properties
(mobility=0.0001-0.001 cm2/V·s) (electron)
SMILES string
[P](=O)(c7ccccc7)(c6ccccc6)c1cc2c(cc(cc2)c3cnc4c5ncccc5ccc4c3)cc1
InChI
1S/C34H23N2OP/c37-38(30-9-3-1-4-10-30,31-11-5-2-6-12-31)32-18-17-25-20-26(14-15-27(25)22-32)29-21-28-16-13-24-8-7-19-35-33(24)34(28)36-23-29/h1-23H
InChI key
OAOXYBSWOZWDBB-UHFFFAOYSA-N
Application
Phen-NaDPO is a universal cathode modifier for organic optoelectronics. Phen-NaDPO can significantly lower the work function of the Ag metal as well as ITO and HOPG.
It lowers the energy loss between organic layer and the metal electrode, results in higher acheiveable efficiency for organic solar cells. It is also used as cathode interfacial material for inverted Perovskite solar cells, and electron transport materials for Perovskite solar cells and other organic electronic devices in general.
It lowers the energy loss between organic layer and the metal electrode, results in higher acheiveable efficiency for organic solar cells. It is also used as cathode interfacial material for inverted Perovskite solar cells, and electron transport materials for Perovskite solar cells and other organic electronic devices in general.
保管分類
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
関連コンテンツ
有機無機ハライドペロブスカイトは、新規光吸収材料として注目されています。ペロブスカイト太陽電池は、塗布による作製が可能なため低コストでの製造が期待され、フレキシブルで軽量な太陽電池の実現に向けた研究が盛んにおこなわれています。
Use of the Phen-NaDPO:Sn(SCN)2 Blend as Electron Transport Layer Results to Consistent Efficiency Improvements in Organic and Hybrid Perovskite Solar Cells.
Seitkhan A, et al.
Advances in Functional Materials, 29(49), 1905810-1905810 (2019)
Qiang Su et al.
Advanced science (Weinheim, Baden-Wurttemberg, Germany), 5(10), 1800549-1800549 (2018-10-26)
The phenomenon of positive aging, i.e., efficiency increased with time, is observed in quantum-dot light-emitting diodes (QLEDs). For example, the external quantum efficiency (EQE) of blue QLEDs is significantly improved from 4.93% to 12.97% after storage for 8 d. The
Improved quantum dot light-emitting diodes with a cathode interfacial layer.
Ding T, et al.
Organic Electronics, 32, 89-93 (2016)
