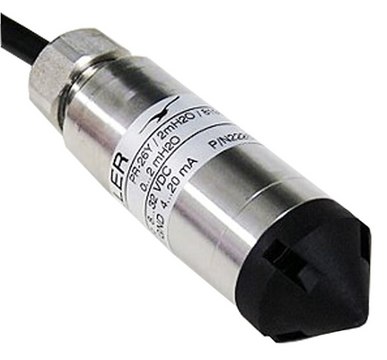

ZFTPS4200
Level sensor
For use with Milli-Q® HX systems, Differential pressure sensor for accurate level measurement
別名:
Level sensor 26Y 4-20mA TC
ログインで組織・契約価格をご覧ください。
サイズを選択してください
表示を変更する
この商品について
NACRES:
JA.13
UNSPSC Code:
41104200
AC/DC input
4 - 20 mA (Current output)
material
316L stainless steel , polyoxymethylene (Protection cap )
packaging
pkg of 1 unit
parameter
pressure range at 100 mbar (10 bar), temp. range at 20 - 100 °C
D × L
17 mm × 5 m , Cable
compatibility
for use with Milli-Q® HX
General description
Y-series transmitters have an extremely small temperature error. This is achieved using digital compensation of an all-analogue signal path. A mathematical model for TC zero and TC gain with any order can therefore be determined in the calibration process and stored in the transmitter with a resolution of 1.5 K. The accuracy of the end product therefore essentially depends on the amount of testing and the linearity of the measuring cell.
With the Series 26Y, the monocrystalline silicon measuring cell is reliably protected from the measuring medium by a stainless-steel diaphragm. The steel diaphragm itself is protected from mechanical influence by a plastic cap and has outstanding performance features in terms of accuracy and stability due to its large diameter of 17 mm.
With the Series 26Y, the monocrystalline silicon measuring cell is reliably protected from the measuring medium by a stainless-steel diaphragm. The steel diaphragm itself is protected from mechanical influence by a plastic cap and has outstanding performance features in terms of accuracy and stability due to its large diameter of 17 mm.
Features and Benefits
- Extremely accurate, excellent long-term stability, no pressure hysteresis.
- Integrated overvoltage and polarity reversal protection.
- Protection class: IP68.
- Compact, robust housing made from stainless steel.
- Pressure ranges of 100 mbar to 10 bar (corresponds to a water column of 1 m to 100 m).
- Current output: 4–20 mA (2-wire technology).
Legal Information
Milli-Q is a registered trademark of Merck KGaA, Darmstadt, Germany
