791555

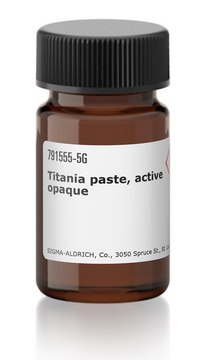

Titania paste, active opaque

別名:

Greatcell Solar® 18NR-AO Titania Paste, TiO2 paste

ログインで組織・契約価格をご覧ください。

サイズを選択してください

この商品について

UNSPSC Code:
12352103
PubChem Substance ID:
329768279
NACRES:
NA.23
MDL number:
MFCD00011269

主要文書

すべての文書を表示
テクニカルサービス
お困りのことがあれば、経験豊富なテクニカルサービスチームがお客様をサポートします。
お手伝いします
テクニカルサービス
お困りのことがあれば、経験豊富なテクニカルサービスチームがお客様をサポートします。
お手伝いします

SMILES string

[Ti](=O)=O

InChI

1S/2O.Ti

InChI key

GWEVSGVZZGPLCZ-UHFFFAOYSA-N

description

Crystal Structure: > 99% anatase (analysis carried out on starting material, prior to paste manufacture)

form

paste (cream)

concentration

27.0 wt. %

avg. part. size

20 nm (active), ≤450 nm (scatter)

viscosity

40000-55000 mPa.s(20 °C) (Analysis carried out with 20mm 4 degree cone/plate; 40 s-1))

Quality Level

100

関連するカテゴリー

General description

Titania paste, active opaque is a precursor for titania that has anatase particles and larger sized anatase scatter particles, used to form a white coating on the fluorine doped tin oxide glass (FTO) substrate. It is used in a variety of electrochemical devices to improve electron mobility and power efficiency.

Application

Titania paste has a hierarchical pore structure which allows non-agglomerated loading on nanomaterials for the fabrication of dye sensitized solar cells with higher light absorption.
Use Active Opaque Titania Paste in applications that do not require transparency.
The dispersed scattering particles in Active Opaque Titania Paste formulation lead to enhanced DSC performance through the large surface/volume ratio of the sintered film.
Active Opaque Titania Paste has a blend of active anatase particles (~20nm) and larger anatase scatter particles (up to 450nm).
After drying; this paste must be fired at or above 500°C. This results in an opaque sintered layer with film thickness of 7-8μm for one printed layer and ~15μm for two layers; when using a 48T mesh.
This paste exhibits optimal rheological properties that provide good surface uniformity and contain organic binders specially formulated to provide versatile porosity suitable for a range of dye/electrolyte systems.
Storage: Store in the dark at 20°C

Legal Information

Product of Greatcell Solar® exclusive supplier of Sun2 products under license from EPFL.
Greatcell Solar® is a registered trademark of Greatcell Solar
Greatcell Solar is a registered trademark of Greatcell Solar

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H315,H319

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2

保管分類

10 - Combustible liquids

wgk

WGK 1

flash_point_f

195.8 °F

flash_point_c

91 °C

適用法令

試験研究用途を考慮した関連法令を主に挙げております。化学物質以外については、一部の情報のみ提供しています。 製品を安全かつ合法的に使用することは、使用者の義務です。最新情報により修正される場合があります。WEBの反映には時間を要することがあるため、適宜SDSをご参照ください。

Substances Subject to be Indicated Names

ishl_indicated

Substances Subject to be Notified Names

ishl_notified

791555-BULK: + 791555-20G:4548173962689 + 791555-5G:4548173962696 + 791555-VAR:

jan

最新バージョンのいずれかを選択してください：

試験成績書（COA）

Lot/Batch Number
MKDB1046
MKCX3906
MKCQ9017
MKCP7220
MKCM2387

適切なバージョンが見つかりませんか。

特定のバージョンが必要な場合は、ロット番号またはバッチ番号で特定の証明書を検索できます。

COAを検索

以前この製品を購入いただいたことがある場合

文書ライブラリで、最近購入した製品の文書を検索できます。

文書ライブラリにアクセスする

Mesoporous titania hollow spheres applied as scattering layers in quantum dots sensitized solar cells
Xu X, et al.
Materials Chemistry and Physics, 136(2-3), 1060-1066 (2012)
Formation of size-tunable dandelion-like hierarchical rutile titania nanospheres for dye-sensitized solar cells
Lan C, et al.
Royal Society of Chemistry Advances, 3(2), 559-565 (2013)
Thiazolo [5, 4-d] thiazole-based organic sensitizers with strong visible light absorption for transparent, efficient and stable dye-sensitized solar cells
Dessi A, et al.
Royal Society of Chemistry Advances, 5(41), 32657-32668 (2015)
Towards green, efficient and durable quasi-solid dye-sensitized solar cells integrated with a cellulose-based gel-polymer electrolyte optimized by a chemometric DoE approach
Bella F, et al.
Royal Society of Chemistry Advances, 3(36), 15993-16001 (2013)
Sol-gel based TiO2 paste applied in screen-printed dye-sensitized solar cells and modules
Hovcevar M, et al.
Journal of Industrial and Engineering Chemistry, 19(5), 1464-1469 (2013)
