RV2MAG-26K MILLIPLEX MAP Rat Vascular Injury Magnetic Bead Panel 2 - Toxicity Multiplex Assay

Design And Price Your Kit


Replacement Information

Key Spec Table

Analytes AvailableSpecies ReactivityKey ApplicationsDetection Methods
Adiponectin sE-Selectin sICAM-1 RMplexLuminex xMAP
Catalogue NumberRV2MAG-26K
Trade Name
DescriptionMILLIPLEX MAP Rat Vascular Injury Magnetic Bead Panel 2 - Toxicity Multiplex Assay
OverviewThe MILLIPLEX® MAP Rat Vascular Injury Magnetic Bead Panel 2 contains all the components necessary to measure the following four biomarkers in any combination using Luminex® xMAP® technology: Adiponectin, sE-Selectin, and sICAM-1. The kit uses a 96-well format, contains a lyophilized standard cocktail, two quality controls and can measure up to 38 serum or plasma samples in duplicate.
Background InformationVascular injury is important to address during the preclinical safety study of drugs. A lack of well-defined mechanisms of drug-induced vascular injury (DIVI) in animals, and the absence of specific, qualified biomarkers have become significant barriers in the development of new therapeutic treatments. In the past, hemodynamics, such as heart rate and mean arterial blood pressure, were used to measure DIVI risks but these only targeted single biomarkers. Today, some of the known vascular injury mechanisms are related to vascular wall shear and/or circumferential “hoop” stress, drug/chemical toxicity, and immunological mediation. With these known biomechanics, primary targets (smooth muscle, endothelial and immune-mediated cells) yield a number of promising candidate biomarkers for DIVI study. We provide valuable research assays to investigate multiple biomarkers of vascular injury in rat serum and plasma samples using the Luminex xMAP® instrument platform.
Product Information
Detection methodLuminex xMAP
ConfigurationDesign your multiplex kit by choosing available analytes within this panel.
Precision, %
  • Inter-assay: < 10
  • Intra-Assay: < 10
Panel TypeMAGNETIC Toxicity
Quality LevelMQ200
ApplicationThe analytes available for this multiplex kit are: Adiponectin, sE-Selectin, and sICAM-1.
Key Applications
  • Multiplexing
Application Notes• This is an overnight assay.
• This assay requires 25 µL of 1:80 diluted serum or plasma sample per well in kit Assay Buffer (please dilute per protocol instructions).
Biological Information
SpecificityThere was no or negligible cross-reactivity between the antibodies for an analyte and any of the other analytes within a panel.
Species Reactivity
  • Rat
Analytes Available
  • Adiponectin
  • sE-Selectin
  • sICAM-1
Assay PanelEverything you need in a single kit.
Cross ReactivityThere was no or negligible cross-reactivity between the antibodies for an analyte and any of the other analytes within a panel.
  • 67% - 92%
Physicochemical Information
  • See kit protocol for individual analytes sensitivities.
Linearity of DilutionContact technical support for this information.

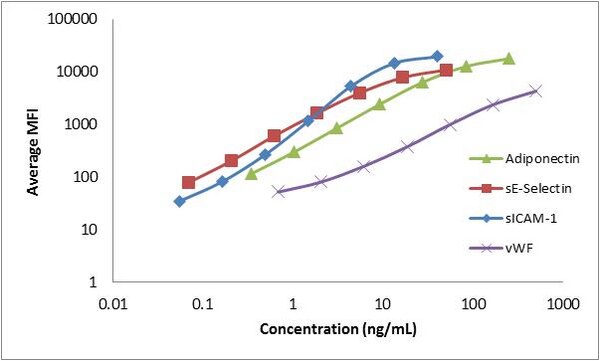

Standard Curve Range
  • Adiponectin: 0.3 – 250 ng/mL
  • sE-Selectin: 0.1 – 50 ng/mL
  • sICAM-1: 0.1 – 40 ng/mL
Materials Information
Toxicological Information
Safety Information according to GHS
Safety Information
Product Usage Statements
Usage Statement
  • Unless otherwise stated in our catalog or other company documentation accompanying the product(s), our products are intended for research use only and are not to be used for any other purpose, which includes but is not limited to, unauthorized commercial uses, in vitro diagnostic uses, ex vivo or in vivo therapeutic uses or any type of consumption or application to humans or animals.
Storage and Shipping Information
Storage ConditionsRecommended storage for kit components is 2 - 8°C.
Packaging Information
Material Size96-well plate
Transport Information
Supplemental Information



Protocol- RV2MAG-26K
Protocol: Rat Vascular Injury Magnetic Bead Panel 2

MILLIPLEX MAP Rat Vascular Injury Magnetic Bead Panel 2 - Toxicity Multiplex Assay SDS


Safety Data Sheet (SDS)
