855070 HMBA-PEGA resin

Novabiochem®

HMBA-PEGA resin MSDS (material safety data sheet) or SDS, CoA and CoQ, dossiers, brochures and other available documents.
CAS #: 58318-77-7
View Products on Sigmaaldrich.com
855070
View Pricing & Availability

Overview

Replacement Information

Key Spec Table

CAS #
58318-77-7

Pricing & Availability

Catalogue Number AvailabilityPackaging Qty/Pack Price Quantity
8550700001
Retrieving availability...
—
Fulfillment and delivery delayed Fulfillment and delivery delayed
In Stock
Discontinued
Limited Quantities Available
Availability to be confirmed
    Remaining : Will advise
      Remaining : Will advise
      Will advise
      Contact Customer Service
      Contact Customer Service

      		 Glass bottle 0 g
      Retrieving price...
      Price could not be retrieved
      Minimum Quantity is a multiple of
      Maximum Quantity is
      Upon Order Completion More Information
      You Saved ()

      —
      Request Pricing
      		 —
      8550700005
      Retrieving availability...
      —
      Fulfillment and delivery delayed Fulfillment and delivery delayed
      In Stock
      Discontinued
      Limited Quantities Available
      Availability to be confirmed
        Remaining : Will advise
          Remaining : Will advise
          Will advise
          Contact Customer Service
          Contact Customer Service

          		 Glass bottle 0 g
          Retrieving price...
          Price could not be retrieved
          Minimum Quantity is a multiple of
          Maximum Quantity is
          Upon Order Completion More Information
          You Saved ()

          —
          Request Pricing
          		 —
          Description
          Catalogue Number855070
          Replaces01-64-0113
          Brand Family Novabiochem®
          Alternate Names
          • 4-Hydroxymethylbenzoic acid PEGA resin

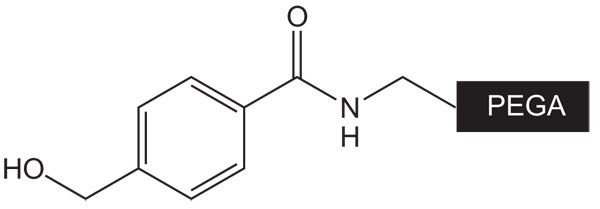

          Background InformationThis support consists of amino PEGA resin derivatized with Sheppard's base-labile 4-hydroxymethylbenzoic acid linker [1].

          For further information, please refer to the product entry for amino PEGA resin (855015).Note: PEGA resins are supplied swollen in ethanol, with 1g dry resin corresponding to approximately 15 mL of swollen resin. As the beads of PEGA resins become very sticky and easily damaged when shrunk or dried, they are best handled in a swollen state. To use, the appropriate amount of swollen resin should be weighed into a reaction vessel and any residual ethanol removed by copious washings with the appropriate solvent or solvent mixture. After peptide assembly, the resin should be washed with DCM and transferred to the cleavage vessel. Excess DCM can be removed under vacuum, and the shrunk resin treated with the TFA cocktail.

          The characteristics of the swollen resin, its robustness and high permeability enables its use in both batch and continuous flow synthesis apparatus.

          The product number for this product was previously 01-64-0113.

          To obtain a certificate of analysis (CoA) of a lot that begins with the letter "A", please select the option in the right hand menu "Request a COA for Lot#s starting with A".
          References
          Product Information
          CAS number58318-77-7
          HS Code3907 29 90
          Structure formula ImageStructure formula Image
          Quality LevelMQ200
          Applications
          Biological Information
          Physicochemical Information
          Dimensions
          Materials Information
          Toxicological Information
          Safety Information according to GHS
          Storage class10 - 13 Other liquids and solids
          WGKWGK 1 slightly hazardous to water
          Safety Information
          Product Usage Statements
          Storage and Shipping Information
          StorageStore at +2°C to +8°C.
          Packaging Information
          Transport Information
          Supplemental Information
          Specifications
          Color (visual)white to yellow to beige
          Appearance of substance (visual)beads
          Loading (determined from the substitution of the Fmoc-Leu loaded resin)0.20 - 0.50 mmol/g
          Swelling Volume (in DMF)lot specific result
          dry resin %lot specific result
          The resin is sold swollen in ethanol.
          Global Trade Item Number
          Catalogue Number GTIN
          8550700001 04027269112349
          8550700005 04027269112356

          Documentation

          HMBA-PEGA resin SDS

          Title

          Safety Data Sheet (SDS)

          Citations

          Title
          [1] R. C. Sheppard, et al. (1982) Int. J. Peptide Protein Res., 20, 451.
